Meetyou Machinery Pet Washing Line Hot Water China High Torque Pet Recycling Plant Manufacturing High-Quality Strand Cutting Pelletizing Line

Product Description

Zhangjiagang Meetyou Machinery Co., Ltd.

Meetyou Machinery Waste Plastic Recycling Line China Automatic Positioning PE Water Strip Granulator Suppliers Wholesale Strand Pelletizing Line
Product Description
Our Pelletizing Strand Pelletizers Are In Use For The Processing Of The Melted Polymer Into Cylindrical, Dry, And Easy To Handle Plastics Pellets. Moreover, We Offer Strand Pelletizers Which Are Specially Designed For The Processing Of Food And Pharmaceutical Products.
We Provide The Whole Product Range For Strand Pelletizing - From Cooling To Dewatering, Pelletizing, And Screening. The Size And Function Of Every Single Component Are Individually Configured To Your Product'S Needs. Our Plants Cover A Throughput Range From 2 Kg/H To 6,300 Kg/H.
We Offer A Full Scope Of Suitable Components To Cover The Entire Process From Melt To Pellet. Due To The Modular Design And Easily Changeable Connections, The Individual Components Can Be Easily Integrated Into Existing Production Lines. Our Specialty Is The Layout And Delivery Of Complete Strand Pelletizing Plants, Along With The Engineering And Fabrication Of Tailor-Made Special Solutions. We Realize Systems For The Plastics And Chemical Industry As Well As For Food And Pharma Applications.
Within The Strand Pelletizing Process, The Extruded, Cooled, And Dried Plastic Strands Are Taken Into The Strand Inlet. The Strands Are Caught By Both Feed Rolls And Transported To The Cutting Section. The Upper Feed Roll Is Pressured.
The Cutting Section Consists Of A Stationary Bed Knife And A Rotating Cutting Rotor. Between The Edges Of The Bed Knife And The Cutting Rotor, The Plastic Strands Are Cut Into Regular, Cylindrical Pellets. The Acceleration Of The Cutting Transfers The Pellets Into The Pellet Outlet. From There They Going To The Following Components, Such As Vibration Screens Or Conveyors.

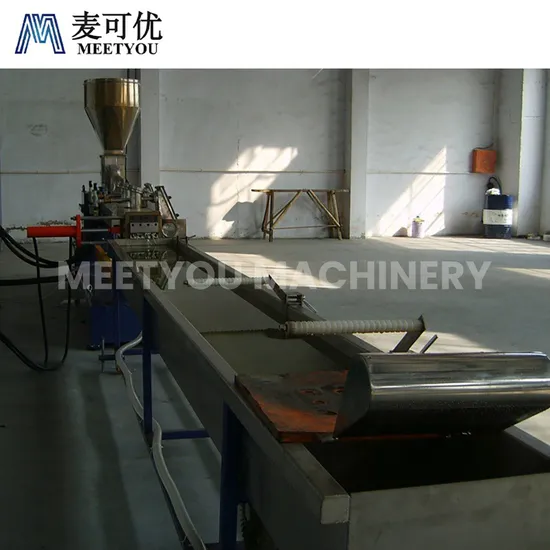

A Line Utilizing A Simple Water Bath For Strand Cooling Often Is The First Option For Compounding Plants. However, The Individual Layout Can Vary Significantly, Due To The Demands Of Throughput, Flexibility, And Degree Of System Integration. In Strand Pelletizing, Polymer Strands Exit The Die Head And Are Transported Through A Water Bath And Cooled. After The Strands Leave The Water Bath, The Residual Water Is Wiped From The Surface By Means Of A Suction Air Knife. The Dried And Solidified Strands Are Transported To The Pelletizer, Being Pulled Into The Cutting Chamber By The Feed Section At A Constant Line Speed. In The Pelletizer, Strands Are Cut Between A Rotor And A Bed Knife Into Roughly Cylindrical Pellets. These Can Be Subjected To Post-Treatment Like Classifying, Additional Cooling, And Drying, Plus Conveying.
Water Baths Are Designed To Meet The Needs Of Your Extrusion Line. Made Of 304 Stainless Steel, Our Cooling Tanks Are Available In Multiple Sizes To Accommodate Most Extrusion Applications. Our Rugged Painted Steel Support Frames Are Equipped With Heavy-Duty Support Jacks For Adjusting The Height. A Weir Box With A Removable Screen Is Standard Along With Inlet And Drain Ports.
Water Strand Pelletizing Line Is Suitable For Most Polymer Compounding Production, Which Features A Simple Structure, Easy Operation, And Convenient Maintenance
Air Cooling Strand Pelletizing Line Can Be Used To Process And Application Of Partial High Polymer Material, Including PVC, LLDPE, Masterbatch, High-Filling Caco3 Masterbatch, Degradable Masterbatch, High-Density Carbon Masterbatch, And So On.
Advantage Of Water Strand Pelletizing Line
It Is Suitable For Most Polymer Compounding Production, Which Features A Simple Structure, Easy Operation, And Convenient Maintenance. The Threshold Of Operators Is Also Low. This System Consists Of A Strand Die, Water Batch, Air Knife, Strand Pelletizer, And Vibrating Classifier
Advantages Of Air Cooling Strand Pelletizing Line:
Unlike Conventional Extrusion In A Water Bath, The Air-Cooling Strand Pelletizing Line Does Not Require Manual Threading Of Strands. Strands Are Deposited Directly On The Conveyor Belt And Automatically Conveyed To The Strand Pelletizer. The Cooling Is Done By Special Air Fans With High Cooling Capacity.
Features Air Cooling Strand Pelletizing Line:
Transport And Cooling Of Granules Made By Wet Extrusion
Ideal For Water-Soluble Formulation
Continuous Operation Or Batch Production
Suitable For Laboratory Usage In The Research And Development Phase
For Pelletizing From An Extruder Or Reactor Vessel
Specification

item	value
Plastic Processed	HDPE, HDPE/PP, PE/PP, ABS/PP, MLLDPE, LDPE, ABS, PET
Condition	New
Output (kg/h)	150kg/h - 1000kg/h
Machinery Test Report	Provided
Core Components	Motor, Gearbox, Screw
Power (kW)	7.5KW or Customized
Certification	CE ISO
granulator size	3*3mm
Machine color	seven stars standard
Machine material	stainless steel 304

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control the quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts are from our certified supplier, our quality inspector will check these parts before entering our warehouse. Detailed Photos

FAQ
Q. What are acceptable payment terms?
A. T/T or L/C at sight.
Q. What is the delivery time for the machines?
A. Usually it will be 50-60 days according to the situation of the order.
Q. What is the warranty time of the machines?
A. It will be 12 months since the acceptance of the machines or 15 months since delivery to the loading port.
Q. What about your after-sales service?
A. Engineers available to make installation, commissioning, training, and providing after-sales service overseas.
Q.How many electric, water, air need for the machines?
A.technical department supply the whole layout for workshop details.
Q. Can I operate machine if don't have experienced engineers?
A. (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
Q. Any quality checking before shipment?
A. 100% confirm, run and test machines before shipment with quality certificate
Q. How can u help us when face some technical problem?
A. 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q. Where can we get spare part?
A. we choose International Brand that customer can find it in everywhere, such as Siemens, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
