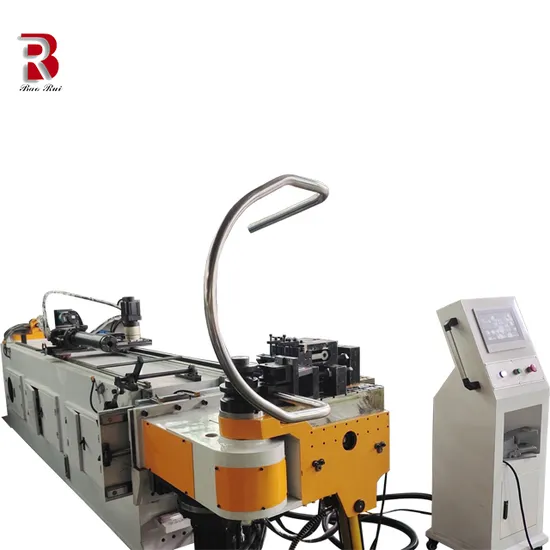

Dw38CNC X 3A-2sv Automatic CNC Stainless Steels Hydraulic Round Pipe Bender with Good Proction Line
| US$22,500.00 | 1 Pieces (MOQ) |
Basic Info.
Model NO.
DW38CNC X 3A-2SV
Warranty
14 Months
Condition
New
Certification
CE, SGS
Automation
Automatic
Raw Material
Pipe
Control System
Mustubishi PLC
Power
CNC
Extra Services
End Forming
Min Bending Radius
1.5 D
Function
Push Bending
Max Bending Capacity
38 X 2mm
Name
CNC Bending Machine
Servo Motor
Mustubishi
Push Bending Radius
No Limited
Machine Type
Pipe and Tube Bending Machine
Drive
Servo Motor
Transport Package
Packed in Wooden Case
Specification
2600*750*1000
Trademark
Baorui
Origin
Jiangsu, China
HS Code
13357892
Production Capacity
3 Piece/Pieces Per Week
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 600.00cm
Package Gross Weight
2000.000kg
Product Description
KS38CNCX3A-2SV CNC Pipe Bending Machine with push bending functionTechonological data
| Item | Name | Unit | Data | ||
| 1 | Max bending capacity | mm | Φ38×2t | ||
| 2 | Rolling Bending radius | Draw bending | Round tube | 1.5D - 5D | |
| Rectangular tube | 2D - 4D | ||||
| 3. | Roll bending | Round tube | 6D- ∞ | ||
| Rectangular tube | 7D- ∞ | ||||
| 4 | Max bending radius | mm | 180mm | ||
| 4 | Max feeding length | mm | 2500 | Can according to customer's requirement | |
| 5 | Max bending degree | Degree | 190 | ||
| 6 | Control Panel | PLC +touch screen | |||
| 7 | Bending unit | piece | 33 | ||
| 8 | Working speed | bending speed | Deg/sec | 150 | |
| Rotary speed | Deg/sec | 200 | Rotary fast will be dangerous | ||
| Feeding speed | mm/sec | 1000 | |||
| 9 | Accuracy | feeding | mm | ±0.1 | |
| rotary & bending | Degree | ±0.1 | |||
| 10 | Rotary servo motor power | W | 750 | Japan Mitsubishi | |
| 11 | Feeding servo motor power | Kw | 5 | Japan Mitsubishi | |
| 14 | Oil motor power | Kw | 4 | ||
| 15 | Max storage units | group | 1000 | Can enlarge according to requirement | |
| 16 | Max pressure | MPa | 12 | Adjustable | |
| 20 | Hydraulic control system | Magnetic exchange valve | Japan Yuken | ||
| 21 | Oil tank | L | 110 | ||
| 23 | voltage | 380V, 50HZ, 3 phases | Can according to customer requirements | ||
| 23 | Machine weight | Kg | 1500 | ||
| 24 | Machine size | mm | 4900×1200×1450 | ||
