Pine Grass Hemp Rice Husk Alfalfa Straw Sawdust Biomass Wood Pellet Plant
Product Description

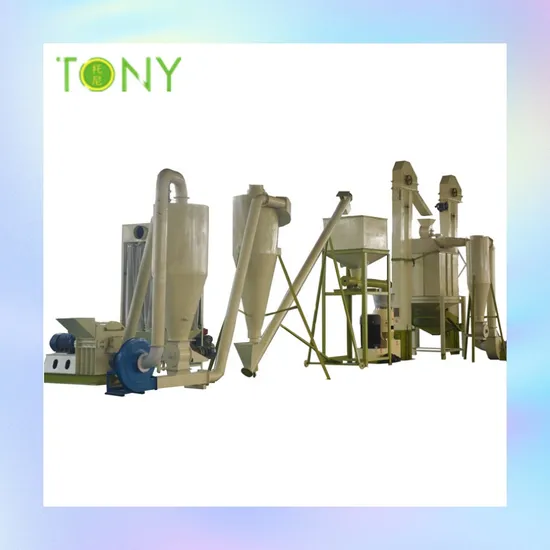

Introduction and application of biomass energy wood pellet line
The pellet line through our research and design is manufactured for produce the wood pellets, Main equipments within it include Wood Crusher, Dryer, Storage bin, Screw Conveyor , pellet mill, Hoisting machine, Cooling and dusting machine and Packing machine. It has advantages such as compact structure, good appearance, high yield, less consumption, convenient and reliable performance etc.
Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree),
bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material
Size:2-4mm (All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet
The biomass energy pellet line mainly processes includes:
Crushing- Grinding-drying - pelleting - cooling - packing

Step	Product name	Technical Parameter	Main machines for choosing
1	Raw material	*If you need to bare a tree of its bark, from 2 step; *If logs or other large size materials, from 3 step, be splited into wood chips *If small pieces, directly from 5 to reduce the size suitable for pelleting	/
2	Barking process	For making high quality pellets(optional)	Debarker machine
3	Crushing process	Raw materials (size: thickness >10mm and L * W >50 * 50mm), are crushed or shreddered into chips or small size.	1.Log splitter 2.Sawdust Chipper 3. Drum Chipper 4.Mobile Branches Grinder 5.Chaffer Cutter 6.Palm Fiber Making Machine
4	Dryer (with hot stove)	Rotary Dryer includes Stove and Main Rotary Dryer, which can reduce the moisture from 50% to 10%. Our stove is fueled by coal and biomass fuel, saving electrical energy largely. (client can build the hot stove by self, and we provide its drawing) The moisture content of raw materials must be controlled :10%-15%.	1.Rotary Drum Dryer 2. Air Flow Dryer
5	Grinding process	The chips or small size raw material are ground by hammer mill to particle size less than 5mm suitable for pelleting.	1.High efficiency Hammer mills 2.Multifunctional hammer mills 3.Wood Crusher 4.Straw Hammer Mill 5.Straw Rotary Chopper
6	Pelleting process	Pellet mill machine is the most important equipment : Press raw material into pellet.	1.TYJ series Ring Die pellet mills 2.Skj series Flat Die pellet Milll
7	Cooler Separator	Complete closed structure, stainless sieve, low noise and stable operating	Cooler Separator
8	Transport modules between the components	Elevating Conveyor, belt conveyor, screw conveyer
9	Pulsed dust collector	collecting dust, clean the pellet.	Pulsed dust collector
10	Packing Machine	In this process, we suggest our Semi-Auto Packing Machine to you. The weighting scope of this machine is 15kg-50kg per bag.	1.Ton Packing Machine 2.Automatic Packing Machine 3.wood Shavings Bales

Detailed explanation of biomass energy wood pellet line
1.Crushing Process:
2.Grinding Process: 3.Drying Process:
4. Pelleting Process:
5. Cooling Process: 6. Packing Process:
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic Semi-Auto Packing Machine to you. Design Drawings for Complete Wood Pellet Line Successful cases for Complete wood Pellet line
TONY is an integrated enterprise specializing in development, production and sales, which is a professional pelleting equipment manufacturer for many years. Located in Zhangqiu,Jinan,North China, we enjoy convenient water, land, railway and air transportation.
We are a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet ,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
Questions asked Frequently
Q: What is a pellet mill/pellet machine?
A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?
A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?
A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?
A: All materials must be 5mm or less.
Q: What size pellets can I make?
A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.
Q: Do you ship worldwide?
A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.
Q: If I purchase a pellet mill, will you show me how to make pellets?
A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.

FAQ	Q: What is the capacity of the production line? A: The capacity of wood pellet production line can be ranged from 300kg/h to 10ton/h per production line.
	Q: What kind of raw materials can be used to make fuel pellets? A: Agro. Waste: Corn straw, rice husk, peanut hull, maize straw, wheat straw, cotton straw, rice straw, corn cob, bean stalk, sunflower stalks, mustard stalk, rice stalks, coffee husk, cotton shell, peanut shell, coconut shell and other agricultural waste. Forestry waste: Sawdust, tree branch, leaf, wood chips, wood wastes, forestry wastes, palm tree, sugarcane residue, tea waste and other organic waste.
	Q: What's the size of final pellets? A: Pellets Diameter: 4mm, 6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.) Pellets Length: 10-50mm; (Adjustable, normally between 20-36mm)
	Q: How many people needed to operate the pellet line? A: It generally needs 2-5 persons to operate the pellet line.(According to your materials)
	Q: Are you trading company or factory? A: We are both trading company and manufacturer, professionally manufacturing pellet machines with many years experiences.
