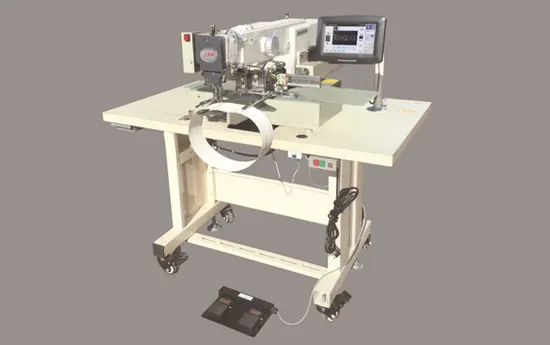

Bag Loop Sewing Non-Household Automatic Bag Sewing Machine
| US$3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FD3020
Applicable Thickness
Middle Thickness Material
Drive
Electric
Thread Number
Three Threads
Needle Number
Three Needles
Stitch Type
Chain Type
Transport Package
Wooden Case
Specification
90*90*110
Trademark
hesheng
Origin
Hebei Province, Cn
HS Code
8452212000
Production Capacity
4000
Packaging & Delivery
Package Size
120.00cm * 120.00cm * 110.00cm
Package Gross Weight
145.000kg
Product Description
| Sewing range | 300MM*200MM/450MM*300MM (optional) | Machine needle | DPX17 26# (standard) |
| Maximum sewing speed | 2800rpm (below 3.0 needle distance) | Cutting thread form | Pneumatic flat pulling type (professional cutting rough thread structure) |
| Stitch length | 0.1~12.7MM | Shuttle bed | Triple rotary shuttle |
| Thread form | Single needle flat sewing | Pressure frame | Pneumatic type |
| Medium pressure foot type | Pneumatic type | Power supply | Standard 220V, with grounding protection |
| Maximum number of stitches | 9000 stitches/per pattern | External dimensions | 1200MM*1100MM*1100MM |
| Data storage method | Internal storage | Total weight | 145kg |
| Function | automatic thread cutting, automatic reversing, automatic thread trimming, automatic turning, zoom in and out, graphic editing, graphic copying, computer drawing, voice speaking, broken wire detection (optional), automatic lifting of pressure foot (optional) | ||
Purpose: trailer belt: connecting belt, loop belt, bottom bag (dual-use type)
Adopting a 6-inch touch screen display in both Chinese and English, and can sew any pattern within the required model range. Rotary shuttle: triple rotary shuttle (customized), durable and wear-resistant, with a longer life than conventional rotary shuttles, suitable for professional sewing of thick threads. Cutting knife: customized professional cutting knife blade, durable and stable cutting. Rail: precision linear rail, imported wide synchronous belt, stable and long-lasting use.
