Product Description

Indoor/Outdoor Rental LED Video Wall Display Screen Panel
Feature:
NG500/1000 Series Rental LED Screen
LED NG500/1000 series rental LED display's new design incorporates many aesthetic elements, adopts High-strength die-casting aluminum, only 7.5kg per cabinet, and better performance with high-definition visual display.Lightweight and Thin
Portable and good stability with a weight of 7.5kg and thickness of 80mm. The lightweight feature makes the LED display easy to carry, transport, and install, saving a lot of money on your labor costs. High-quality SMD1921 LEDs
We use high-quality Nationstar lamp beads with good waterproof, highly reliable, high brightness, and well-designed unit display pixels, which can improve the stability and display effect of the whole screen.Support Right Angle Installation
Supports 90° right angle LED display installation to meet some special buildings and applications. Seamless Display and Better Visual Effects
High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience. The picture quality confronts viewers with an entirely new sensory experience.Wide Viewing Angle
Using SMD1921 lamp beads, there is a wide viewing angle range, and the displayed image is visible even at the edge of the rental LED display.Curved installation
To meet the various aspects of the LED screen field, the LED display is also available for curved screens after adding a curve lock.
Curved with every 3° between -6°and 6°, a total of 60 cabinets is required to build a circular LED display.
500x1000mm cabinets parameter:

Pixel Pitch	P2.604	P2.97	P3.91	P4.81
LED type	SMD1415	SMD1415	SMD1921	SMD1921
Pixel configuration	3-in-1 SMD	3-in-1 SMD	3 in 1 SMD	3-in-1 SMD
Pixel density	147,456 pixels/m2	112,896 pixels/m2	65,536 pixels/m2	43,264 pixels/m2
Module dimension(W*H)	250*250mm	250*250mm	250mmx250mm	250mmx250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Drive Method	1/24 scan	1/21 scan	1/16 scan	1/13 scan
Maintenance	back	back	back	back
Cabinet size (W*H)	500*1000mm	500*1000mm	500*1000mm	500*1000mm
Cabinet depth	88mm	88mm	88mm	88mm
Cabinet material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet weight	13kg/pcs	13kg/pcs	13kg/pcs	13kg/pcs
Brightness	≥4500 cd/m2	≥4500 cd/m2	≥4500 cd/m2	≥4000 cd/m2
Best Viewing Distance	2.5m to 25m	3m to 30m	4m to 40m	5m to 50m
Viewing Angle	140 * 140	140 * 140	140 * 140	140 * 140
Grey Level	14 Bit	14 Bit	14 Bit	14 Bit
Refresh Rate	≥1920HZ /3840HZ	≥1920HZ /3840HZ	≥1920HZ /3840HZ	≥1920HZ /3840HZ
Power consumption(Avg.)	140w/cabinet	140w/cabinet	130w/cabinet	120w/cabinet
Power consumption(Max.)	400w/cabinet	400w/cabinet	390w/cabinet	390w/cabinet
Humidity-operating	10% ~ 95%	10% ~ 95%	10% ~ 95%	10% ~ 95%
Operating Temperature	-20° - 50° C	-20° - 50° C	-20° - 50° C	-20° - 50° C
Screen life	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours
Controlling System	Synch or Async	Synch or Async	Synch or Async	Synch or Async
Certificates	CE,RoHs,FCC,UL	CE,RoHs,FCC,UL	CE,RoHs,FCC,UL	CE,RoHs,FCC,UL
Ingress Protection (IP)	IP65	IP65	IP65	IP65
Warranty	3 Years	3 Years	3 Years	3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

500x500mm cabinets parameter:

Pixel Pitch	P2.604	P2.97	P3.91	P4.81
LED type	SMD1415	SMD1415	SMD1921	SMD1921
Pixel configuration	3-in-1 SMD	3-in-1 SMD	3 in 1 SMD	3-in-1 SMD
Pixel density	147,456 pixels/m2	112,896 pixels/m2	65,536 pixels/m2	43,264 pixels/m2
Module dimension(W*H)	250*250mm	250*250mm	250mmx250mm	250mmx250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Drive Method	1/24 scan	1/21 scan	1/16 scan	1/13 scan
Maintenance	back	back	back	back
Cabinet size (W*H)	500*500mm	500*500mm	500*500mm	500*500mm
Cabinet depth	88mm	88mm	88mm	88mm
Cabinet material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet weight	8kg/pcs	8kg/pcs	8kg/pcs	8kg/pcs
Brightness	≥4500 cd/m2	≥4500 cd/m2	≥4500 cd/m2	≥4000 cd/m2
Best Viewing Distance	2.5m to 25m	3m to 30m	4m to 40m	5m to 50m
Viewing Angle	140 * 140	140 * 140	140 * 140	140 * 140
Grey Level	14 Bit	14 Bit	14 Bit	14 Bit
Refresh Rate	≥1920HZ /3840HZ	≥1920HZ /3840HZ	≥1920HZ /3840HZ	≥1920HZ /3840HZ
Power consumption(Avg.)	140w/cabinet	140w/cabinet	130w/cabinet	120w/cabinet
Power consumption(Max.)	400w/cabinet	400w/cabinet	390w/cabinet	390w/cabinet
Humidity-operating	10% ~ 95%	10% ~ 95%	10% ~ 95%	10% ~ 95%
Operating Temperature	-20° - 50° C	-20° - 50° C	-20° - 50° C	-20° - 50° C
Screen life	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours
Controlling System	Synch or Async	Synch or Async	Synch or Async	Synch or Async
Certificates	CE,RoHs,FCC,UL	CE,RoHs,FCC,UL	CE,RoHs,FCC,UL	CE,RoHs,FCC,UL
Ingress Protection (IP)	IP65	IP65	IP65	IP65
Warranty	3 Years	3 Years	3 Years	3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

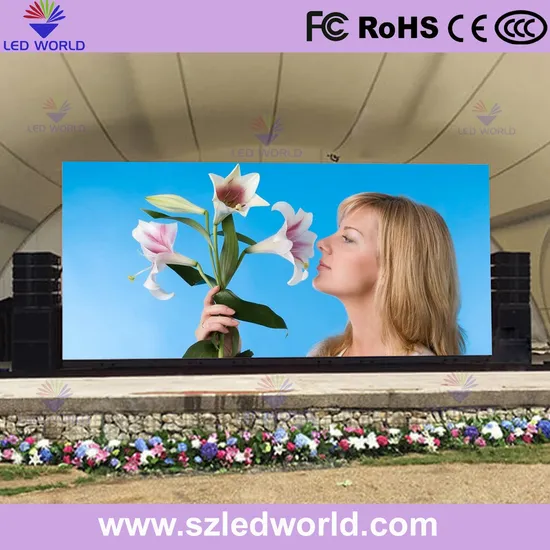

Outdoor or indoor rental led display Project case:
Our company:
Shenzhen LED World CO., LTD was founded in 2009, focusing on the LED technology research and LED full-color display production, sales, and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of the modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers. Company strict implementation of 7 S management standard professional management standards, has passed 3C, CE, FCC, RoHS, ISO9001-2009 quality system certification, reliable quality, advanced technology, automation of form a complete set of products and continuous development of our roots. products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia, etc more than 20 countries and regions, and gained good reputation from the clients. Workshop and Packing:
Package: Certification:
After-sales maintenance
1. Receive the cargo
Make sure the cargo is in sealing condition and the cargo storage temperature
between - 30ºC and 60ºC when you receive the goods from the customs
2. Install and use the product
Please adopt a preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it. Keep it working 8 hours or above continually per day will be better. It will be better to use it at least once a week.
3. Cleaning
Be sure to use a soft brush to clean the display surface and PROHIBIT any liquid when cleaning. Our Sales Team:
