Commercial Cabinet Microwave Fast Food Heating Oven Pre-Made Food Chilled Food Heating Sterilization Processing Machine

Product Description

Product Description

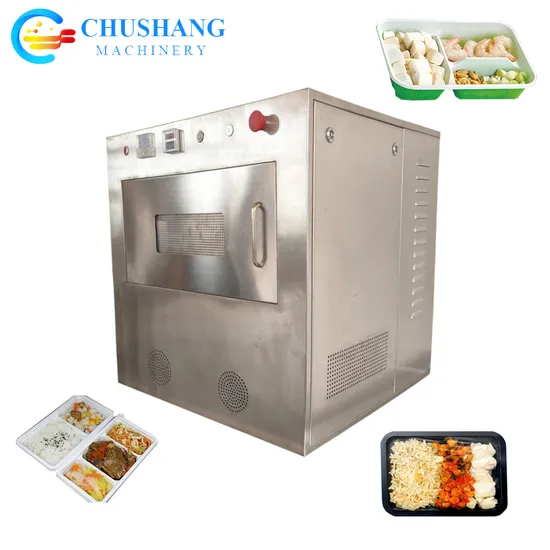

High Efficience Cabinet Microwave Fast Food Heating Oven Pre-made Food Chilled Food Heating Sterilization Processing Machine
This is a cabinet microwave drying and sterilization Oven, with a small body size and small footprint, which can be operated by a single person, Suitable for experiment, small yield and so on. The cabinet is equipped with pulleys at the bottom, which can be flexibly moved and used conveniently, and also equipped with a PLC control system, which can adjust parameters and store data according to different conditions of raw materials, with one click calling, very convenient. The size and power of this machine can also be customized according to materials and site use. This device can be used for drying and sterilizing in agricultural products, flower tea, pet food, feed, yellow mealworms, black soldier flies, insects, beverages, vacuum packaged foods, meat jerky, tofu, nuts, seasoning and other products.
The biggest highlight: Compared to household microwave oven, it has a larger output, faster speed, and better sterilization effect.
Technical Parameter

Product Model	CS-HPG-6
Power	6 KW (Customized)
Material	Fully Stainless Steel + chamber SUS304
Control System	PLC
Working Frequency	2450MHz ± 50Hz
Rotary Speed	4-10 laps/min (Adjustable)
Capacity	4-5kg/h (Customized)
Package	Plastic Bag and Wooden Case
Microwave Leakage Standard	ISO ≤ 5mw/cm ²
Application	Foods, Flower Tea, Pet Food, Feed, Insects, Beverages, Meat Jerky, Tofu, Nuts, Agricultural Products, etc.
Machine can be customized according to customer needs

Product Display

We also have some other models for you to choose from, and in addition, we can also customize equipment according to your product situation and needs.

No.	Model	Voltage	Power	Size (L*W*H)	Capacity (kg/h)
1	CS-HPG-3	220V/380V	3KW	750×750×800mm	30kg
2	CS-HPG-6	380V	6KW	1100×1050×1400mm	60kg
3	CS-HPG-12	380V	12KW	1100×1200×1800mm	120kg
4	CS-HPG-30	380V	30KW	1500×1800×2000mm	300kg
5	CS-HPG-50	380V	50KW	2000×2500×2500mm	500kg

Microwave technology has advantages that traditional drying and sterilization techniques cannot match: Heating Rapidness: Microwave heating only requires one tenth to one percent of the time of conventional heating methods to complete the entire heating process. The material is heated both inside and outside, with a small temperature difference, retaining the nutritional components and flavor of the food. Good sterilization effect: High sterilization efficiency, microwave can heat materials in an extremely short time, quickly reaching the temperature for sterilization and disinfection. Overall uniformity: Microwave energy can penetrate the interior of the material, and its heating process is carried out simultaneously throughout the entire material, with rapid and uniform temperature rise, greatly reducing the time for heat conduction in conventional heating. Energy saving and environmental friendliness: The energy used for microwave is electric energy, which is pollution-free to the environment. Microwave energy utilization efficiency is high, compared with conventional electric heating method, it can generally save 30% to 50% of electricity, Application Field
Packing & Shipping
Company Profile
Shanghai Chushang Machinery Co., Ltd. is located in Shanghai, adjacent to international ports and airports, with convenient transportation.
Chushang Machinery has a professional technical team with nearly 30 years of experience in the microwave industry, dedicated to the research and design of industrial microwave machine.
Our products mainly include microwave heating drying & sterilization machine, low-temperature microwave vacuum drying machine, microwave high-temperature machine and microwave thawing machine, which are widely used in various industries such as food, chemical, pharmaceutical, building materials, textiles and metallurgy.
We are dedicated to providing customized solutions for every customer. Chushang Machinery, the microwave expert besides you!
