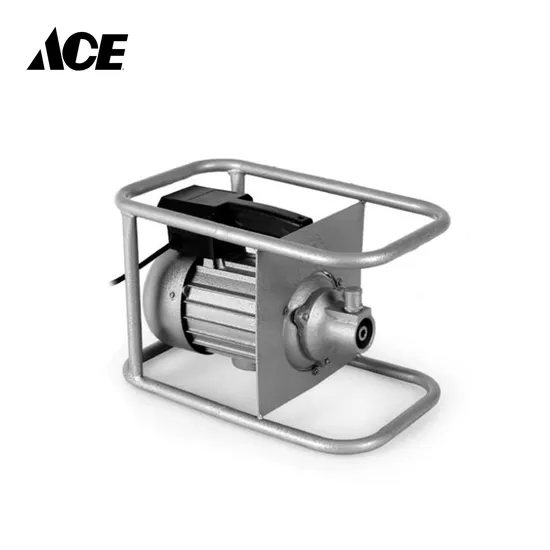

2840rpm Drive Electric Concrete Vibrator

Product Description

ZN70FG concrete vibrator is an essential tool for high-quality concrete construction
Good vibration effect: The use of high-performance vibrating head can effectively transmit the vibration force to the inside of the concrete to ensure that the concrete achieves a dense effect.
Easy to operate: The design is simple and easy to use, and it is easy to operate. General workers can operate it after simple training.
Strong durability: Made of high-quality materials, it has strong wear resistance and durability, and can work stably for a long time in harsh environments.
Concrete vibrator
Round type , Japanese type ,Dynapac Type
Drive the vibrator shaft form 28mm/32mm/38mm/45mm and 60mm
It widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.
Specificate Date

Matched vibrator shaft

Item	Concrete vibrator shaft
Model	¢(mm)	ZX35	ZX-38	ZX-45	ZX-50	ZX-60	ZX-70
Diameter of head	¢(mm)	35	38	45	50	50	70
Length of head	L (mm)	380	420	420	480	410	450
Vibrating Frequency	(HZ)	183	185	185	200	200	200
Vibrating Ampitude	(mm)	0.91	1	1.2	1.15	1.15	1.35
Dia of flexiable hose	D(mm)	30	30	32	36	36	36
Diaof flexiable shaft	D(mm)	10	10	10	13	13	13
Weight (6mtr)	(kg)	14	15	16	20	21	24
packing size	CM	75*75*5.5

Detailed Photos

Application scenarios:

Production
Factory

Hot Products

Excavator	Surface Finishing Screed	Concrete Vibrator	Power Trowel
Remote Control Trowel	Concrete Mixer	Plate Compactor	Compactor Machine
Drywall Sander	Steel Bar Cutter	Vibratory Roller	Steel Bar Bender

FAQ

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
