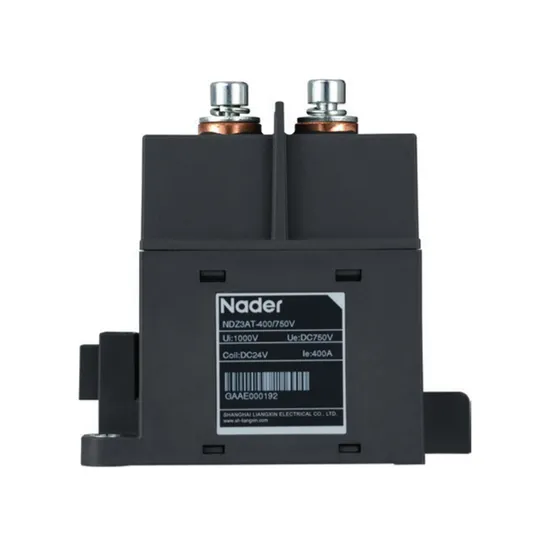

NDZ3AT-400 High voltage1000V 400Amps DC Electric Contactor High voltage contactor for EV Charging station
| US$52.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NDZ3AT-400
Phase
2
Main Circuit Rating Voltage
1000V
Main Circuit Rating Current
400A
Type
Dc Contactors
Package type
Ceramic package
Load polarity
heteropolarity
Operating voltage range
DC12-1000V
Contact Resistance
0.5mOhm(at400A)
Control coil
DC12V DC24V
Mechanical life
200,000 times
Auxiliary contact
without
Electrical life
DC750V 400A 1000times
Transport Package
Carton
Specification
Ceramic package
Trademark
LAZZEN
Origin
China
Production Capacity
500000/Years
Packaging & Delivery
Package Size
23.00cm * 25.00cm * 26.00cm
Package Gross Weight
2.500kg
Product Description
They are used to connect and disconnect electrical circuits in a wide range of applications, including:1. Electric vehicles: High voltage DC contactors are used in electric vehicles to control the flow of power between the battery pack and the motor.2. Renewable energy systems: They are used in renewable energy systems such as solar and wind power plants to connect and disconnect the DC power generated by the panels or turbines.3. Industrial machinery: High voltage DC contactors are used in industrial machinery to control the flow of power to motors, pumps, and other equipment.4. Battery storage systems: They are used in battery storage systems to connect and disconnect the battery bank from the DC load.5. Aerospace and defense: High voltage DC contactors are used in aerospace and defense applications to control the flow of power to critical systems such as avionics and weapon systems.Overall, high voltage DC contactors play a crucial role in controlling the flow of power in a wide range of high voltage DC applications.Product Parameters
Detailed Photos
Certifications
Company ProfileBeian (Suzhou) New Energy Co., Ltd. is one high-tech green energy enterprise in Suzhou, China.
We focus on customized solution and products of lithium ion battery.
Our products are widely used on solar energy storage system, electric vehicle, electric forklift, marine, golf carts, AGV etc.
Our batteries are lithium ion phosphate and NMC types, we provide standard battery cell, standard battery module, standard battery pack, tailor made battery module and tailor made battery pack.
