Economical rice straw carbonization oven

Product Description

Product Description
Economical rice straw carbonization ovenProduct Description
Introduction of Economical rice straw carbonization oven:
This Economical rice straw carbonization oven for you also called environmental gasification carbonization equipment, is used to convert biomass powder to get natural charcoal dust under high temperature.
The raw material goes through the destructive distillation process in the oxygen-free environment to reach high carbonization degree.
Economical rice straw carbonization oven Structure:
♦ Feeding system
♦ Gasification furnace
♦ Carbonization furnace
♦ Output device
♦ Smoke purify system
♦ Cooling system
♦ Electric cabinet
Features of Economical rice straw carbonization oven:
--- Continuous working, higher capacity, one side feeding raw material, and one side get biomass charcoal
--- Adjustable working speed. If your feeding material is wet, you can adjust the chain speed, and takes long time to remove the moisture
--- Energy saving, it mainly use gas which produced from Dry Distillation process as fuel to heat
--- Easy to operate. One people is OK.
--- Zero air pollution

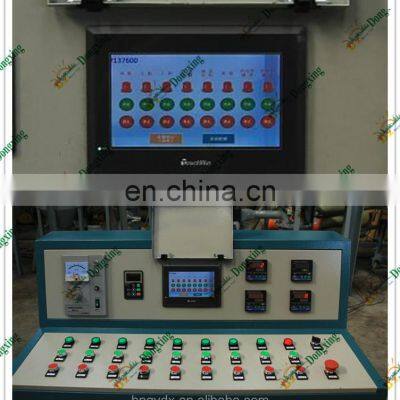

--- This machine includes PLC, it can control whole process autonomic
Advantages of Economical rice straw carbonization oven:
The machine adopts double return more bypass double channel SY type structure design, mainly composed of primary drying device, and cooling parts,and water cooling discharging, flue gas recycling part, water dust removal, gas condensation part.Channel SY type design and use of flue gas waste heat reclycling which is once again raised the thermal efficiency;the equipment of the heat utilization rate reached more than 90%. The whole machine adopts PLC control.we can use proper material to control the carbonization period according to material’s moisture and pellet size.
Working principle of Economical rice straw carbonization oven:
This machine adopts double return more bypass double channel SY type structure design, mainly composed of primary drying device, and cooling parts and water cooling discharging, flue gas recycling part, water dust removal, gas condensation part. Channel SY type design and use of flue gas waste heat recycling which is once again raised the themal efficiency. The equipment of hear utilization rate reaches more than 90%. The whole machine adopts PLC control device. We can use proper material to control the Dry distillation period according to material’s size and moisture.
Data of Economical rice straw carbonization oven:

Name	Economical rice straw carbonization oven
Model	800*860	1000*10600
Capacity	400-600kg/h	800-1000kg/h
Power	21kw	23kw
Voltage	380V 3phase 50HZ
Screw conveyor	219*5000	273*6000
Feeding screw	219*2200	273*2200
Output conveyor	219*5000	219*6000
Gasifier diameter	1500	1700
Material required size	10-50mm	10-30mm
Feeding moisture	15-20%	15%-20%
Material and charcoal rate	3:1	3:1
Required working site	80CM2	80CM2

We can enlarge the machine size depends on your capacity. The biggest diameter is 2m because of shipping container width.
Available materials for this Economical rice straw carbonization oven
It is widely used for almost all the agricultural wastes, like: Rice husk, Olive wastes, Coconut shell, Peanut shell, Sunflower seed husk,
Palm kernel shell, Walnut shell, Almond shell, Pistachio shell, Sawdust, Wood wastes, Bamboo wastes, Sugarcane wastes/bagasse,
Plants straw, Crop residues, Soybean straw, Wheat straw, Cotton straw, Corn stalks, Sorghum stalk, Maize Cob/Corncob, Sorghum husk, grass,etc.
Get charcoal from this Economical rice straw carbonization oven:
Related machines:
After getting charcoal from this Economical rice straw carbonization oven, you can shape charcoal to different shapes.
It has three models depends on the final shape: Screw extruder machine, ball press machine, and Shisha briquette machine.
The final shape: Stick shape, ball/pillow shape, round/cubic shape.
Stick shape machine
Ball shape machine
Shisha briquette machine
Packaging & Shipping
Package and delivery of Economical rice straw carbonization oven:
We normally ship it nude(like below picture). It needs 40'GP to load.
Our Services
Company uphold: honesty, quality first, customer first for the purpose.
Pre-sale:
♦ We will recommend best model machine for our cilents depends on their materials, material moisture, size, capacity,etc
♦ Provide best quality, best price, best service
After-sale:
♦ We can arrange our engineer install and set uop new equipment until customer satisfied.
♦ we will send customer maunal and necessary documents to help them to learn and know more knowledge. Master the technique of our machine how to get good quality charcoal.
24hours online for service you!!!
Company Information
Gongyi Dongxing Machinery company is specialized in the import, export and wholesale biomass charcoal machinery production line,
like: wood crusher, sawdust dryer, briquette machine, and carbonization stove,etc. The final briquette or charcoal are best fuel for barbecue or boiler.
Our aim is to supply the market with top quality charcoal equipment, and provide best service and best price for our customer.
Thanks very much for client's trust!
FAQ
Questions of Economical rice straw carbonization oven:
1.What is the carbonization rate?
This carbonization rate can reach to 99%.
2.Could you offer complete Economical rice straw carbonization oven?
Yes, we will allocate suitable production line according to your special requirement, such as Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet, and related machines, etc.
3.Where is your factory located? How to get there?
We are located in Gongyi city, Henan province, China.
Our nearest airport is Zhengzhou International Airport, and the Airport Code is CGO
We will pick you up at airport.Welcome to visit our factory.
If you are interest in our machine contact me at any time
Economical rice straw carbonization oven
