Vertical Pillar Drill Press for Steel
| US$100.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZT-19GF
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Chuck Size
16mm
Spindle Travel
100 mm
Table Size
350 mm
Motor
550 W
Overall Height
1100 mm
Spindle Taper
Mt2
Table Travel
406mm
Spindle Speeds Series
250-3200
Column Diameter
80 mm
Max Drilling Diameter
19mm
Transport Package
785× 460× 280 mm
Specification
53-210 kg
Trademark
tokmc
Origin
China
HS Code
84592900
Production Capacity
1000 Sets /Year
Product Description
drilling machine factoryFeature:
1- small in size, save space
2-The operations are on the spindle box,It is flexible and convenient to change speed, feed safe
3-The main parts are molding casting with high-grade material. Aging treatment, High precision machine processing.
4-Hardened and quenching on slideway

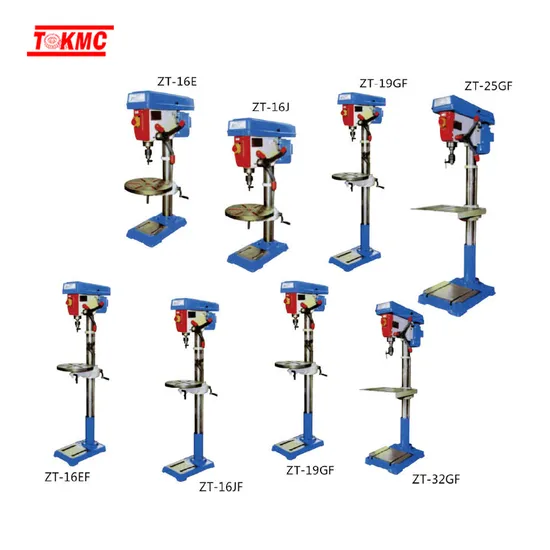

| Item | ZT-16E | ZT16J | ZT19GF | ZT-25GF | ZT-16EF |
| Max.drilling dia.mm | 16 | 16 | 19 | 25 | 16 |
| Chuck size mm | 16 | 16 | 16 | 16 | 16 |
| Table travel mm | 365 | 365 | 406 | 500 | 830 |
| Table size mm | φ290 | φ312 | φ350 | 360×360 | φ290 |
| Spindle travel mm | 80 | 85 | 100 | 125 | 80 |
| Distance spindle axis to column | 182 | 182 | 199 | 225 | 182 |
| Spindle taper | MT2 | MT2 | MT2 | MT3 | MT2 |
| Column diameter mm | 72 | 72 | 80 | 92 | 72 |
| Spindle speeds series r.p.m | 300-3100 | 300-3100 | 250-3200 | 160-2060 | 300-3190 |
| Spindle steps | 12 | 12 | 12 | 9 | 12 |
| Motor W | 370 | 370 | 550 | 750 | 370 |
| Overall height mm | 965 | 992 | 1100 | 1475 | 1545 |
| N.W./G.W. KG | 53/57 | 65/69 | 95/105 | 158/185 | 58/62 |
| Packing case dimensions mm | 785×460×280 | 785×460×280 | 1050×600×300 | 1430×430×570 | 758×460×280 1450×150×150 |
