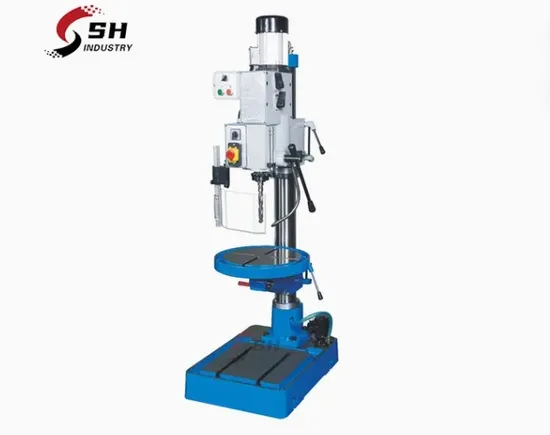

Z5025 Small Mini 25mm Hole Vertical Upright Drilling Machine

Product Description

Z5025 Small Mini 25mm Hole Vertical Upright Drilling Machine
Product Description
The main performance characteristics:
1.Change speed with gears and operate easily ,
2.High spindle speed and wide speed range,
3.Characteristic auto tool releasing device guarantees it is very easy to change tool ,
4.Equipped with coolant system and work lamp.
Application:
Ideal choice for single piece and small batch production mass, production for drilling ,counter boring, tapping screws, spot facing machining, etc.
Product main technical Specifications:

Specifications	Units	Z5025
Max. Drilling capacity	mm	25
Diameter of column	mm	100
Spindle travel	mm	150
Distance spindle axis to column generating line	mm	225
Max. spindle nose to table	mm	630
Max. spindle nose to base	mm	1670
Spindle taper		MT3
Spindle speeds range	r/min	100-2900
Spindle speeds series		8
Spindle feeds	mm/r	0.07 0.15 0.26 0.40
Dimension of worktable surface	mm	440
Table travel	mm	560
Dimension of base table	mm	690x500
Overall height	mm	1900
Spindle motor power	K w	1.1/0.75
Coolant motor	w	40
G.W/N.W	kg	300/290
Packing dimension	cm	70x56x182

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
