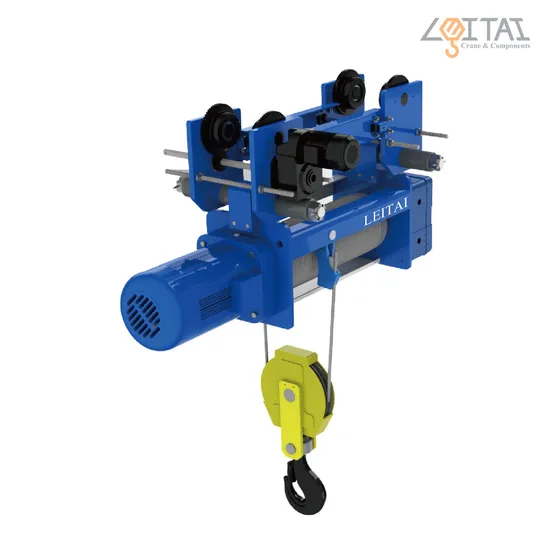

Construction Lift Equipment Lhc-10t/9m Single Girder Monorial Electric Wire Rope Hoist

Product Description

Construction Lift Equipment 10t Single Girder Electric Wire Rope Hoist Product Description
LHC Standard room Monorail hoists (also known as the square electric hoist) refers to the latest professional standards at China and abroad, and can be combined with a lifting capacity of 1.6T-20T, a lifting height of 6M-96M, and a working class of M3-M5 Series electric hoist.
LHC Standard room Monorail hoists is widely used in factories, mines, railways, docks, warehouses and service industries. It is lifting equipment that can adapt to a variety of working conditions.
Advantages of LHC wire rope electric hoist:
Use planetary reducer to reduce speed, high transmission efficiency, low noise, compact structure, omit the intermediate shaft, square appearance, easier to install and fix. The lifting hook is equipped with a locking device to prevent accidental slippage of the rigging. The motor is equipped with a thermal protection device. When the temperature of the motor is too high, the device will automatically cut off the circuit to protect the motor from damage. This machine adopts cam limit, with high limit precision. High safety and reliability: The machine can be equipped with a load-limiting protection device to avoid adverse consequences caused by overloading. Product Parameters
LHC Series Underhang Wire Rope Hoist

Capacity (t)	Work Duty	Lifting Height (m)	Lifting Speed (m/min)	Traveling Speed (m/min)	Rope Reeling	Lifting Motor Power (kW)	Travelling Motor Power (kW) (suspended type)	I-beam Track (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	L5 (mm)	H1 (mm)	H2 (mm)	Hmin (mm)	d (mm)	D (mm)	S (mm)	N.W (kg)	IP Class
2	M4	6	7.2 7.2/0.72	20	2/1	3 3/0.4	0.37	116~180	458	388	268	690~730	320	241	352	600	18	160	105	385	IP44 IP54
		9							553	388	363								155	400
		12							648	388	458								205	415
		18							838	388	648								310	450
		24							1028	388	838								410	480
		30							1218	388	1028								510	510
3.2	M4	6	7.2 7.2/0.72	20	2/1	4.5 4.5/0.4	0.37	116~180	488	412	298	700~730	320	241	352	620	18	130	110	435	IP44 IP54
		9							598	412	408								165	450
		12							708	412	518								220	465
		18							928	412	738								325	500
		24							1148	412	958								435	540
		30							1368	412	1178								540	575
5	M4	6	7.8 7.8/0.78	20	2/1	7.5 7.5/0.8	0.6	120~180	520	512	325	750~780	360	241	392	820	22	170	115	550	IP44 IP54
		9							635	512	440								175	580
		12							750	512	555								230	600
		18							980	512	785								345	650
		24							1210	512	1015								460	690
		30							1440	512	1245								570	740
3.2	M4	6	3.6 3.6/0.36	20	4/1	3 3/0.4	0.37	116~180	648	388	458	690~730	320	241	352	600	18	250	55	425	IP44 IP54
		9							838	388	648								85	460
		12							1028	388	838								110	490
		15							1218	388	1028								140	520
6.3	M4	6	3.6 3.6/0.36	20	4/1	4.5 4.5/0.4	0.6	120~180	708	412	518	700~730	320	241	352	620	18	255	55	475	IP44 IP54
		9							928	412	738								85	510
		12							1148	412	958								110	550
		15							1368	412	1178								140	585
10.0	M4	6	3.9 3.9/0.39	20	4/1	7.5 7.5/0.8	0.75	120~180	750	512	555	750~780	360	241	392	800	22	285	60	610	IP44 IP54
		9							980	512	785								90	660
		12							1210	512	1015								120	700
		15							1440	512	1245								150	750

LHC-Series Double Girder Wire Rope Hoist
