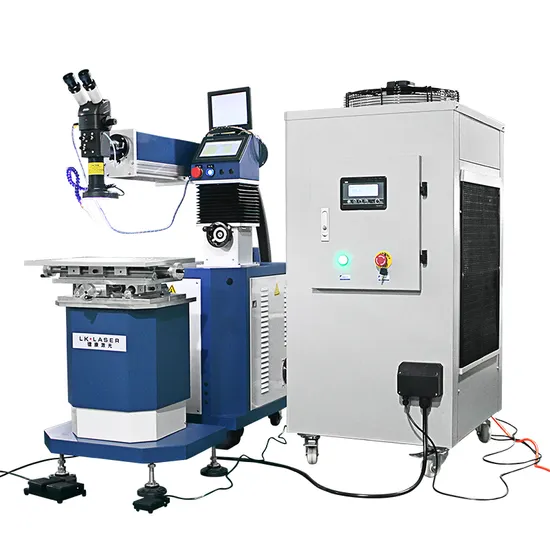

YAG Mold Laser Welding Machine for Mould Die Repair Metal Mould Laser Spot Welder Welding Equipment
| US$4,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LK-MW
Technical Class
Pulse Laser
Control
Manual
Power Density
Deep Fusion Welding
Laser Classification
YAG Laser
Type
Laser Mold Welding Machine
Max. Laser Power
200W
Laser Type
YAG
Laser Wavelength
1064um
Pulse-Width
0.5-20ms
Pulse Energy
80-120j
Pulse Frequency
0-50Hz
Laser Welding Depth
0.1-0.5mm
Laser Welding Area
200*200mm
Cooling Method
Water Cooling
Integrity Power
5kw
Transport Package
Wooden Case
Specification
1300*1100*1300mm
Trademark
LK-Laser
Origin
Shenzhen
HS Code
8515809090
Production Capacity
100000sets/Year
Packaging & Delivery
Package Size
110.00cm * 123.00cm * 156.00cm
Package Gross Weight
380.000kg
Product Description
YAG Mold Laser Welding Machine for Mould Die Repair Metal Mould Laser Spot Welder Welding EquipmentTechnical Parameter:
| Equipment Type | LK-MW200 | LK-MW300 | |
| Max.Laser Power | 200W | 300W | |
| Laser Type | YAG | YAG | |
| Laser Wavelength | 1064um | 1064um | |
| Pulse Width | 0.1-20ms | 0.1-20ms | |
| Pulse Energy | 80J | 120J | |
| Pilse Frequency | 0-50HZ | 0-50HZ | |
| Laser Welding Depth | 2mm | 2.5mm | |
| Size of Welding Spot | 0.2-0.6mm | 0.2-1mm | |
| Repeating precision of work bench | -0.001 | -0.001 | |
| Positioning precision of work bench | -0.001 | -0.001 | |
| Sighting Positioning System | Microscope/CCD | Microscope/CCD | |
| Cooling method | water cooling | water cooling | |
| Integrity Power | 5kw | 5kw | |
| Power supply | AC220VAC/380VAC+-15%/50HZ/25A | AC220VAC/380VAC+-15%/50HZ/25A |
Application :
Working on mould steel Material Pre harden steel (NAK80,KP4,Stavax, dll), Tool steel (SKD11,SKD61,SKH51,Assab88.dll).....
suitable for mold repair ,which can be better merge welding and broken mold ,fit for stainless steel ,iron ,alloy......widely used
in small component repair such as :blow molds ,sell phone molds ,glass molds ,etc .NAK80/ SKD61 /Stavax/ P20 / H13 .......
Our Service 1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
