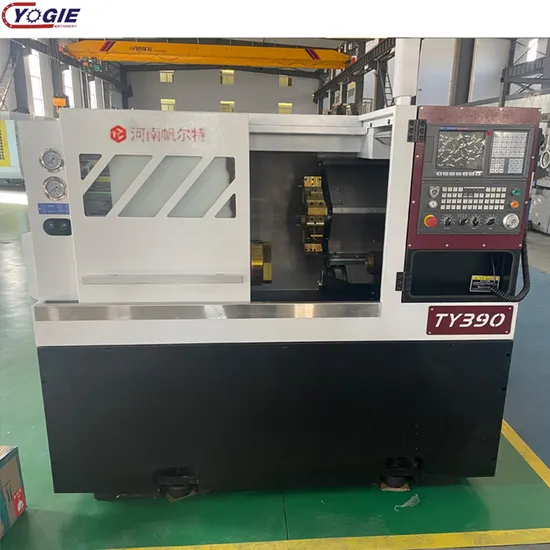

Ty390 High Rigidity 30/45 Degree CNC Lathe Slant Bed CNC Lathe

Product Description

Product Parameters

	Technical Specification	Unit	TY390
Processing range	Max.rotation diameter of the bed	mm	160
	Max.rotation diameter on the saddle	mm	160
	Recommended turning diameter	mm	180
	Effective processing length	mm	300
	Spindle head type	mm	A2-8/11
Spindle	Spindle through hole diameter	mm	88/105/132
	Bar diameter	mm	75/92/115
	Maximum spindle speed	r/min	3000/2000/1600
	Main motor rated output	Kw	15-21/22-30
	Spindle maximum output torque	NM	573NM
Clamping tools	Hydraulic chuck	inches	12/15/18/21
Tailstock	Tailstock sleeve	mm	MT5/6 internal rotation
	Tailstock moving form		Hydraulic
Bed saddle	Slanted angle	DEG	45°
	X Moving distance	mm	350+20
	Rapid movement speed X/Z	m/min	16/24
	Servo motor X/Y/Z	KW	3/3/3(4)
Turret	Mode	Servo hydraulic	BMT55 horizontal 12 positions
	Adjacent tool change time	S	0.5
	Number of tools		12
	Tool size (turning/boring)	mm	32*32/Φ32(40)
	Spring collet model		ER32
	Power turret power	KW	7.5-11
	Y axis travel	mm	±50

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
