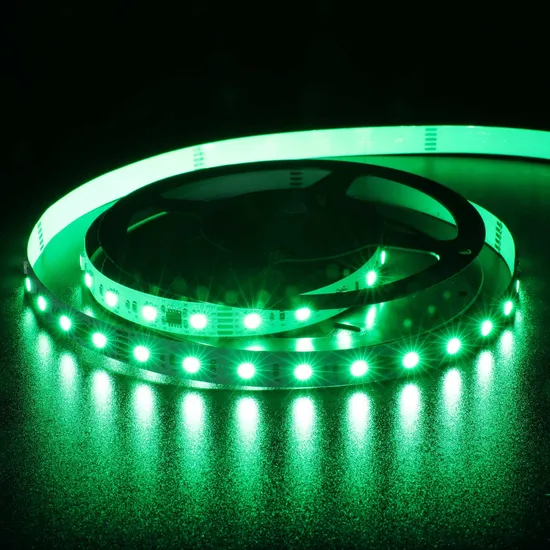

LED Strip Light SMD5050 14.4W/M Pixel Smart Light Strip LED Strip with External IC

Product Description

LED Strip Light SMD5050 14.4W/M Pixel Smart Light Strip LED Strip with External IC

TLV-FS5050Q60W10D Pixel 24V-IP20

Specification

Model No:

TLV-FS5050Q60W10D Pixel 24V-IP20

Product name:

SMD5050 Pixel 60LEDS/M LED strips

LED Light Source:

5050 pixel

Working volt:

24V DC

Power(w):

14.4W/M

Product size:

5000*10MM

PCB Base:

2OZ Copper and double sides PCB

Color:

Red/Green/Blue/color change/color fade/mixed chang

View Angle:

140

CRI(RA>):

/

IP rate:

IP20

Cutting Unit:

6leds(100MM)

Dimmable:

Yes

Wattanty:

3-5 years warranty

Certifications:

TUV CE, FCC, IEC/EN62471

Advantages:
High quality SMD LED
Our SMD LED Use the quality 3chips smd5050 RGB led as light source with 1500-1900mcd brightness and low lumen decline. RGB led ribbon strip is better dissipation, long lifespan and low light decline. SMD LED is compliant with TUV certificate, less than 5% lumen down after 5000H working.
High quality double-side PCB
We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board, which is better heat dissipation and more stable use.
Good color consistency and reliable quality
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.

High Brightness, Multi-color, Energy saving
a, Use the quality 3chips smd5050 RGB led as light source with 1500-1900mcd brightness and low lumen decline.
b, Pure Red, Pure Green, Pure Blue color change and color fade, mixed color change.
c, Low power consumption, more than 1/3 energy saving than the traditional neon light.
Good reliability, flexible, strip length can be cut
a, Every 6leds or 3leds 5050 RGB led as min unit of RGB strip, each unit work separately with high reliability.
b, White color flexible printed circuit board made by rolled copper material which is flexible and not easy to break.
c, Led strip can be cut or connected by 6leds/3leds min unit.
Support Data controller
5050 RGB strip can be controlled by IR or wireless controller, can be change the color, brightness, pattern.
Cost-effective and easy installation
a, Led strip is large mechanized production, it is economical and affordable.
b, Easy installing way
IP20 ( Bare Board ) be used indoor and keep away from rain wet.
IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor.
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater.
Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Packaging and shipping :
1. Packaging: 5m/roll, box packing (132x132x15mm), 100 reels per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
