Mobile Grain Conveyor. Detachable Hopper for Convenient and Efficient Transportation of Grain Products Such as Corn and Soybeans, with No Loss or Damage.

Product Description

Mobile belt conveyors are mainly used for loading and unloading sites often
change occasions, such as: ports, docks, stations, coal yards, warehouses,
construction sites, sand and stone yards, farms, etc., used for short-distance
transportation and loading and unloading of bulk materials or items. This
machine is divided into two categories: lifting type and non-lifting type. The
lifting type is divided into motorized and non-motorized two kinds, the whole
machine is non-motorized, and the operation of the conveyor belt is driven by
electric roller. 1, electric roller 2, tape, 3, upper idler set 4, lower idler set 5, guide groove 6, reversing roll 7, steering device 8, frame 9. Elevating device 10 rows next device

Machine type	bandwidth (mm)	Conveying length (m)	Tape speed (m/s)	Maximum lifting height (m)	Maximum inclination (β°)	Transport capacity (m³/h)	Roll pattern
Y4005A(B) DY4007A(B) DY4010A(B) DY4015A(B)	400	5 7 10 15	1.6	2 2.8 4 6	23	80	V
DY5005A(B) DY5007A(B) DY5010A(B) DY5015A(B)	500	5 7 10 15		1.8 2.6 3.8 5.8	22	140	idler
DY6505A(B) DY6507A(B) DY6510A(B) DY6515A(B)	650	5 7 10 15		1.6 2.4 3.4 5.2	20	250
Note: 1. The center field feeding capacity of the table is calculated as B<20° and material dynamic accumulation Angle α=30:2. In the model, "A" means maneuverable lifting, and "B" means non-maneuverable lifting.

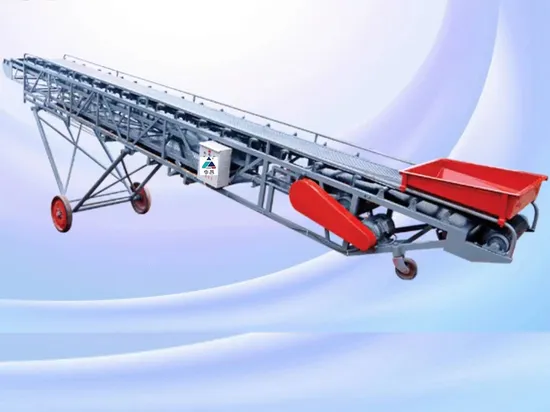

Product display

Read the operation manual and other documents carefully before using the equipment
1 Sweep grain and other impurities from the conveyor belt
2 Check the power motor for leakage and other conditions
3 Check whether the transmission parts are agile and whether oil is needed
4 Check whether the lifting device can be lifted in place, accurate and reliable
5 Check the tightness of the conveyor belt to avoid too loose or too tight conveyor belt
6 Open the conveyor, check whether the operation is smooth, there is no deviation phenomenon
