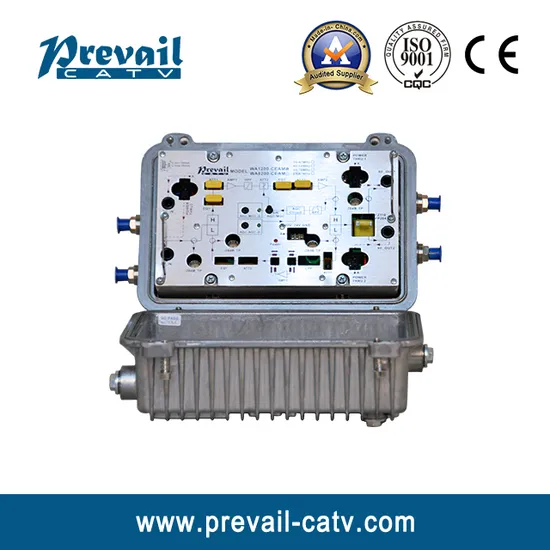

WA1200CEAM series outdoor modular bidirectional trunk amplifier is a
new high gain amplifier. Adopt mature and optimized circuit design, scientific
and rational internal process, high quality materials, to ensure the stable
gain and low distortion.
Performance Characteristics
1. Forward path adopts imported low noise amplify module or GaAs push-
pull module.
2. Return path adopts the newest high index imported reverse dedicated amplify
module.
3. Convenient to debug because of the plug- in duplex filter, fixed equalizer and
attenuator (EQ and ATT both adopt fixed attenuator to adjust the equilibrium
and attenuation), plug-in output tap or splitter, and the scientific and reasonable
on-line detection ports.
4. The output level mode is AGC or MGC optional, it is more convenient.
5. Aluminum waterproof housing, high reliability switching power supply and strict
lightning protection system.
6. The structure adopts embedded modular design, easy to maintain, replace and
debug.
Product Process

Item	Unit	Technical Parameter
Forward Path
Frequency range	MHz	87-862/1003
Rated gain(@FZ110)	dB	30	34		36	38
Min full gain(@FZ110)	dB	≥30	≥34		≥36	≥38
Rated Input Level	dBμV	72
Rated Output Level	dBμV	108
Flatness In Band	dB	±0.75
Noise Figure	dB	≤10
Return Loss	dB	≥16
ATT	dB	1-18 (Fixed, 1dB stepping, selectable)
EQ	dB	1-15 (Fixed, 1dB stepping, selectable)
C/CTB	dB	67		Test condition: 84 channels. Output level: 85MHz/750MHz/1003MHz 100dBuV/105dBuV/108 dBuV
C/CSO	dB	65
Group Delay	ns	≤10 (112.25 MHz/116.68 MHz)
Signal to Hum Ratio	%	< 2%
Gain Stability	dB	-1.0 ~ +1.0

Return Path
Frequency Range	MHz	5 ~ 65
Rated Gain	dB	≥22 (@FZ110)
Min Full Gain	dB	≥22 (@FZ110)
Flatness In Band	dB	±0.75
Noise Figure	dB	≤ 8
Return Loss	dB	≥ 16
Carrier to Second Order Intermodulation Ratio	dB	≥ 52	Test condition: output level 110dBμV, Test points: F1=10MHz,F2=60MHz, F3=F2-F1=50MHz
Group Delay	ns	≤ 20 (57MHz/59MHz)
Signal to Hum Ratio	%	< 2%
General Characteristic
Characteristic Impedance	Ω	75
Test Port	dB	-20±1
Power Voltage	V	A: AC (135 ~ 250)V; B: AC (45 ~ 90)V
Impulse Withstand Voltage (10/700μs)	kV	> 5
Power Consumption	W	≤22
Dimension	mm	295 (L) × 210 (W) × 150 (H)
