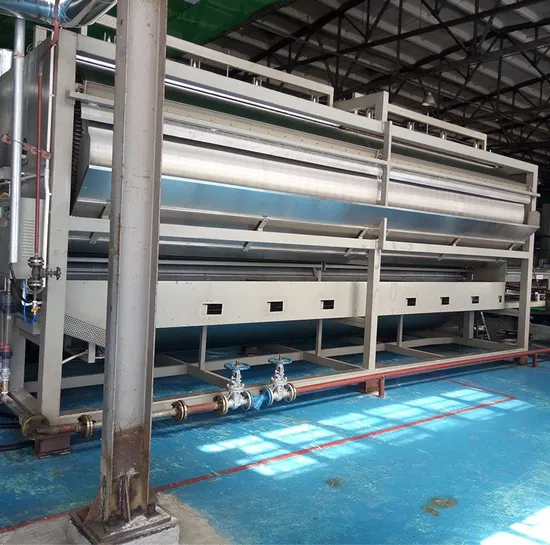

Carbon Steel Stainless Steel Automatic Phenolic Resin/Sulfur/Petroleum Resin Forming Machine Granulation Machine
| US$45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
pfm7
Type
Pressing Granulator
Object
Petroleum Resin, Phenolic Resin, Sulfur
Material
Carbon Steel Stainless Steel
Size
Small
Certification
GS, CE, ISO 9001
Condition
New
Weight
4500kg
Delivery Cycle
5 Weeks
Usage
Candle Molding, Waterproof Building Materials, Che
Heating System
Yes
Cooling System
Yes
Forming System
Yes
Cutting System
Yes
Transport Package
Wooden Package
Specification
10 square meters
Trademark
Support customization
Origin
China Hebei
HS Code
8477800090
Production Capacity
200 Sets Per Month
Product Description
Product DescriptionCarbon steel stainless steel automatic phenolic resin/sulfur/petroleum resin forming machine granulation machine
Resin granulator: Suitable for granulation of solidified materials with melting point below 150ºC after cooling, such as petroleum resin, phenolic resin, sulfur and other materials.
Product Parameters
| specification | Minor | 1000mm×600mm×1200mm |
| middle | 2000mm×1000mm×1800mm | |
| large | 5000mm×2000mm×3000mm | |
| weight | Minor | 200-500kg |
| middle | 1-3t | |
| large | >10t | |
| Dynamic system | Motor power | 1.5kw-30kw |
| Rotational speed | 1400r/min 2800r/min | |
| Transmission mode | Belt/gear/chain drive | |
| Heating system | Minor | 3-8kw |
| middle | 10-20kw | |
| large | 30-60kw | |
| temperature | 50 degrees Celsius -150 degrees Celsius | |
| Cooling system | Motor power | 0.3-3kw |
| Air cooling system | 5-10min | |
| Water cooling system | 2-8min | |
| Productive capacity | Minor | 10-50kg/h |
| middle | 100-500kg/h | |
| large | 1000kg/h | |
| Particle size | 1-10mm | |
Company Profile
Dongguang Tiancheng Machinery Factory, located in Chengnan Development Zone, Dongguang County, Cangzhou City, Hebei Province, 50 meters away from National Highway 105, 3 kilometers away from Beijing-Taiwan Highway,
The traffic is very convenient, the factory covers an area of 20 acres, construction area of 5000 square, with perfect cold and hot processing capabilities, the existing various precision processing equipment 30 sets, with a variety of precision machining capabilities, the existing staff of more than 40 people, including 6 engineering and technical personnel, advanced production equipment, perfect testing means, in petrochemical machinery has a good reputation, Well received by users.
The main products of our factory are: a complete set of benzol dewaxing refining equipment and technology, casing crystallizer, plate wax forming machine, particle forming machine, tower granulation, scraper forming machine, rotary condensing granulator and so on. The company has obtained a number of national patents, products sold at home and abroad and a number of large and medium-sized petrochemical enterprises.
Our factory will, as always, adhere to the "customer first, quality first, reputation first, service first" business purpose, strive to pursue excellence, and create brilliant results, welcome new and old customers to visit the company guidance exchange.
