4h CNC Turret Milling Machine with Extended Long Travel Capabilities

Product Description

Product Description

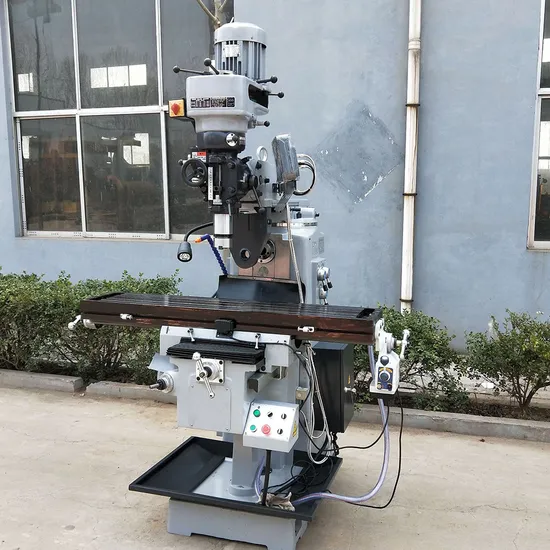

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. The Turret Milling Machine is ingeniously designed for optimal performance, showcasing a robust construction and exceptional machining capabilities. It excels in drilling, boring, and milling of flat planes, inclined planes, and slots. By utilizing the appropriate attachments, it can also handle intricate tasks like milling of helix slots, round surfaces, racks, gears, and splines.2. The Y-axis features a rectangular guideway known for its exceptional rigidity and stability. The saddle's guideway on the Radial Milling Machine is enhanced with TF wearable material, ensuring long-lasting durability.3. This machine is equipped with a high-speed milling head imported from Taiwan, promising unmatched precision and efficiency.4. The slideway and table surface are specially treated to harden them, significantly enhancing durability and longevity.5. The T-slot is precisely machined with exclusive tools, ensuring it does not extend beyond the table's edge. This design boosts rigidity and imparts a sleek, professional appearance to the machine. 6. The slide way is meticulously hand-scraped to maintain high precision and ensure smooth, seamless movement during operation.7. The XYZ axis screws are manufactured in Taiwan, reflecting superior craftsmanship and reliability.8. The XY screws feature dual nuts, simplifying the adjustment of the gap between the screw and nut, ensuring precision and ease of maintenance.9. The XY screw bracket is engineered as a single unit, offering excellent precision and rigidity to enhance the machine's overall performance.10. The electro system is meticulously designed to comply with CE standards, guaranteeing safety and reliability in various operating conditions.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. Constructed from high-grade Meehanite casting, this model promises exceptional weight and solidity. 2. Features robust rectangular slideways for the Y-axis, ensuring stability and precision in operations. 3. Every axis is equipped with adjustable dovetail slideways, providing versatility and precision. 4. Capable of both right and left-handed rotation, adding flexibility to its functionality. 5. High concentricity precision is achieved with taper roller bearings, maintaining less than 0.01mm deviation as measured in the spindle sleeve. 5. Features an automatic spindle sleeve feed for enhanced operational efficiency. 6. Includes a main switch with motor protection, a switch for right/left-handed rotation, and an emergency-stop button, prioritizing user safety and machine protection. 7. Offers an excellent balance of price and value, ensuring stable investment returns over time.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd, strategically located in Zhengzhou, a central hub of China. With extensive experience in exporting machinery, we are committed to not only delivering stable quality products but also providing superior service to our esteemed customers.We offer an extensive range of machine tools to the international market, including Lathe machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press brakes, Shearing Machines, and Machine tool accessories. Our dedicated engineers, who possess years of professional experience and training, are an invaluable asset to our company. They assist customers by not only inspecting goods before shipment but also overseeing all stages of the production process, ensuring top-quality output. With a focus on innovation and quality, our engineers are committed to advancing our machinery offerings and meeting the diverse needs of our global clientele. Our mission is to maintain excellence in service and quality, reinforcing our reputation as a trusted name in the global machinery market. Customers can expect unparalleled expertise and support, making Henan Rowdai Machinery Equipment Co., Ltd a leader in the industry. We pledge to uphold our standards and continue to drive innovation and efficiency across all our operations. Experience the difference with Henan Rowdai Machinery Equipment Co., Ltd - where quality meets reliability.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
