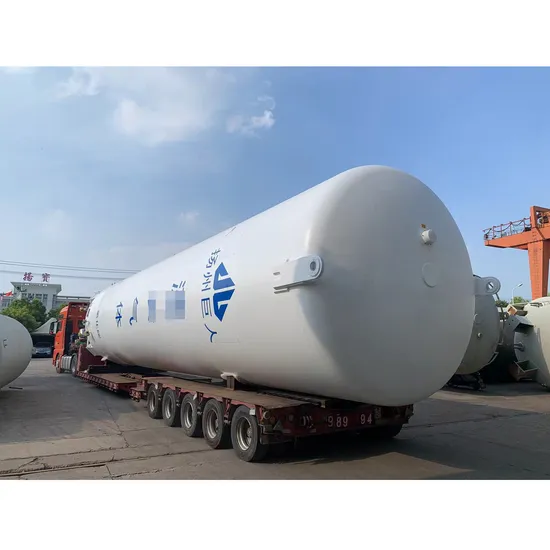

100 Cubic Meters of Cryogenic Storage Tank for Liquid Carbon Dioxide

Product Description

1. Product Description
1) Vacuum powder insulation cryogenic liquid tank can be used for storage and supply of liquid O2, N2, Ar, CO2 and other low temperature liquid. It has the property of little size, safe and reliable, easy use and maintain.
2) The products of this series has been used for industries including gas, chemical, mechanical, metallurgy, electronic, medical, glass, mining, nuclear power etc.
3) Low temperature liquid will be supply from bottom of storage tank by using of external vaporizer and cryopump.
4) Giant Machinery can also design and produce according to customers' requirements.
2. Product Parameters

Model	Volume (m3)	MAWP (Mpa)	Sealed-off Vacuum Degree	Tank Type
CFL(W)-5/2.2	5	2.2	≤2	Vertical or Horizontal
CFL(W)-10/2.15	10	2.15	≤2
CFL(W)-15/2.15	15	2.15	≤3
CFL(W)-20/2.15	20	2.15	≤3
CFL(W)-30/2.15	30	2.15	≤3
CFL(W)-50/2.2	50	2.2	≤3
CFL(W)-100/2.2	100	2.2	≤5
CFL(W)-150/2.2	150	2.2	≤8
CFL(W)-200/2.2	200	2.2	≤8
