Shear Machine Professional Manufacturer with Best Price

Product Description

Shear machine professional manufacturer with best price

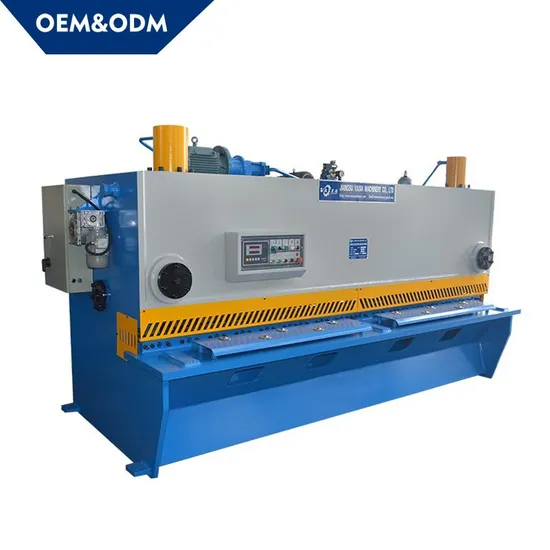

1.The hydraulic guillotine shear is of European design, streamlined looking monoblock.
Its frame is welded construction with steel plate,and inner stress is eliminated by vibration.
So it owns wonderful features such as high strength,stable performance,
easy operation and convenient maintenance.
2.As the cutting beam has been designed in inner-inclined structure,
it is easy for the plates to fall down and the accuracy of products can also be guaranteed;
3.It adopts motor control to adjust the blade clearance rapidly and accurately;
4.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades 6CrW2Si or H13 quality;
5.The position of low blade is adjustable,
which ensures the equilibrium of the gap between blades after regrinding;
6.It is easy and quick to adjust the gap between blades.
The value of the gap is indicated on a marked dial;
7.ESTUN E21 ,DELEM DAC360 adjusting is available for the back gauge;
8.Cutting times of hydraulic guillotine shear are controlled and displayed on NC or CNC monitors;
9.The machine is equipped with European key electrics which will power off for safety guarantee when you open the electrical box .
10.Light alignment device eases drawing line for cutting;
11.Standard front supports sheet frame;
A set of standard blades;
Protection fence and the electric interlocker to ensure the safety of the operators;
12.The machine has CE ,ISO and TUV Inspection .
Optional Specifications:

No	Model	Max cutting thickness(mm)	Max cutting length(mm)	Ram Stroke(n/min)	Cutting angle(°)	Motor(kw)	Machine Size(mm)
1	4x2500	4	2500	20-40	0.5-1.5	5.5	3100x1600x1700
2	4x3200	4	3200	20-40	0.5-1.5	7.5	3800x1800x1700
3	6x2500	6	2500	16-35	0.5-1.5	7.5	3150x1650x1700
4	6x3200	6	3200	14-35	0.5-1.5	7.5	3860x1810x1750
5	6x4000	6	4000	10-30	0.51.5	7.5	4630x2030x1940
6	6x5000	6	5000	10-30	0.5-1.5	11	5660x2050x1950
7	6x6000	6	6000	8-25	0.5-1.5	11	6680x2200x2500
8	8x2500	8	2500	14-30	0.5-1.5	11	3170x1700x1700
9	8x3200	8	3200	12-30	0.5-1.5	11	3870x1810x1780
10	8x4000	8	4000	10-25	0.5-1.5	11	4680x1900x1860
11	8x5000	8	5000	10-25	0.5-1.5	15	5680x2250x2200
12	8x6000	8	6000	8-20	0.5-1.5	15	6800x2350x2700
13	10x2500	10	2500	10-25	0.5-2.0	15	3270x1730x1800
14	10x3200	10	3200	9-25	0.5-2.0	15	3990x2250x2200
15	10x4000	10	4000	6-20	0.5-2.0	15	4720x2490x2500
16	10x5000	10	5000	7-20	0.5-2.0	22	5720x2600x2800
17	10x6000	10	6000	6-20	0.5-2.0	30	6720x2500x2550
18	12x2500	12	2500	10-25	0.5-2.0	15	3270x1730x1800
19	12x3200	12	3200	9-25	0.5-2.0	15	3990x2250x2200
20	12x4000	12	4000	6-20	0.5-2.0	15	4720x2490x2500
21	12x5000	12	5000	7-20	0.5-2.0	22	5720x2600x2800
22	12x6000	12	6000	6-20	0.5-2.0	30	6720x2500x2550
23	12x7000	12	7000	6-20	0.5-2.0	37	7800x2600x3200
24	12x8000	12	8000	6-20	0.5-2.0	45	9100x2800x3400
25	12x10000	12	10000	4-18	0.5-2.0	55	11100x3200x3900
26	12x12000	12	12000	4-18	0.5-2.0	2x37	13200x3950x4800
27	16x2500	16	2500	9-20	0.5-2.5	22	3320x2100x2200
28	16x3200	16	3200	8-20	0.5-2.5	22	4120x2150x2300
29	16x4000	16	4000	8-15	0.5-2.5	22	4760x1900x2560
30	16x5000	16	5000	7-15	0.5-2.5	30	5760x2200x2750
31	16x6000	16	6000	6-15	0.5-2.5	37	6880x2480x3000
32	16x8000	16	8000	5-15	0.5-2.5	55	9120x3000x3800
33	16x10000	16	10000	4-15	0.5-3.0	2x37	11200x3400x4000
34	16x12000	16	12000	3-12	0.5-3.0	2x45	13300x4300x5800
35	20x2500	20	2500	7-20	0.5-3.0	30	3300x2050x2440
36	20x3200	20	3200	6-20	0.5-3.0	30	4000x2160x2540
37	20x4000	20	4000	5-15	0.5-3.0	30	4930x2300x2710
38	20x5000	20	5000	4-15	0.5-3.0	55	5860x2400x3150
39	20x6000	20	6000	4-15	0.5-3.0	55	6100x2650x3375
40	20x8000	20	8000	4-15	1.0-2.5	2x37	9120x3400x3800
41	20x10000	20	10000	4-14	1.0-2.5	2x45	11200x4300x5800
42	20x12000	20	12000	3-12	1.0-2.5	2x55	13380x4500x6100
43	25x2500	25	2500	6-15	1.0-3.5	37	3300x2000x2650
