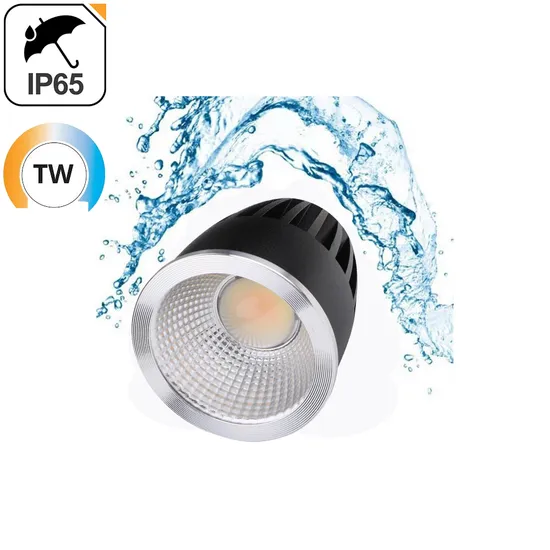

10W Tunable White MR16 Module Light 24V Knx Loxone PWM Loxone Dimmable Interior Lighting Waterproof IP65 Spotlight

Product Description

Product Description

Model	BNL-SP08CW-SR
Voltage	DC 24V
Power	8W/10W
Beam Angle	60°
Materials	Cold Forging Aluminum
Size	D50*52MM
Tunable white	( 3 options adjustable ): 2700k-6500K / 2000K-6000K /1800K-4500K
Shell Color	Silver/Black
compatible with :	KNX or Dali Dimmer PWM LOXONE Dimmer / Loxone tree &Air or DMX512 Controller or 0-10/1-10V dimmable driver
Package	Inner white box: L55*W55*H75mm Ctn box:L17xW55xH29cm Qty/ctn: 100pcs G.W.: 11.00kg/ctn

Features: 1.Long Life Span 2.High Luminous Efficiency 3.Stable Performance 4.Flicker Free 5.Low Consumption 6.Good heat dissipation 7.Easy Install 8.Energy Saving
9.High efficiency constant current driver , power factor can reach 0.9
10.Using COB quality light source,Work perfectly in the high humidity environments -No delay start, no glare.
11.With reasonable compact light structure, and expertise radiating design, ensure the lights working temperature lower,reduce light decay and expand lifetime.12. For Smart home lighting
Application1. Widely used for home decoration use,hotels,clubs,shopping malls. 2. Architectural decorative lighting,boutique atmosphere lighting. 3. Extensively applied in Backlighting,concealed lighting,channel letter lighting. 4.Emergency & security lighting,advertisement sign lighting. 5.Decorative lights for holiday,event,show exhibitio.

Model	Dimmension	Power	Voltage	Beam angle	Lighting color	IP Grade	Certificates
BNL-SP06CW	D49.8*23MM	6W	DC 24V	38°/60°	Tunable white 2700k-6500K / 2000K-6000K /1800K-4500K	IP20	CE,RoHS
BNL-SP06CW-S	D49.8*23MM	6W	DC 24V	38°/60°	Tunable white 2700k-6500K / 2000K-6000K /1800K-4500K	IP20	CE,RoHS
BNL-SP08CW-S	D50*52MM	8W	DC 24V	38°/60°	Single color:2700K/3000K/4000K/5000K/6000K Tunable white :2700k-6500K /2000K-6000K /1800K-4500K RGBW : rgbw2700K or rgbw2700K	IP20	CE,RoHS
BNL-SP08CW-SR	D50*52MM	8W/10W	DC 24V	60°	Tunable white 2700k-6500K / 2000K-6000K /1800K-4500K	IP20	CE,RoHS
BNL-SP08CW	D50*68MM	8W	DC 24V	12°/24°/36°	Single color:2700K/3000K/4000K/5000K/6000K Tunable white :2700k-6500K /2000K-6000K /1800K-4500K RGBW : rgbw2700K or rgbw2700K	IP20	CE,RoHS
BNL-SP12CW-Black	D50(front ) *D61(back) *H75mm	8W/12W	DC 24V	12°/24°/36°	Single color:2700K/3000K/4000K/5000K/6000K Tunable white :2700k-6500K /2000K-6000K /1800K-4500K RGBW : rgbw2700K or rgbw2700K	IP20	CE,RoHS

Certifications
Company Profile
FAQ Q1 : Can i make sample order ?
----Yes,we support start sample order to verify quality first.
Q2:How long the lead time ?
---Normally 7-15 working days (if have stock,finally depend on your quantity and requirement )
Q3:What is the package ?
----usually single package by white single box.Buck order by Carton.
Q4:What ship way can provide ?
---By DHL/Fedex Or economic ship way.
Q5:Can we customized ?
---Yes,we can base on your specify requirement customized for you.((Color temperature/Logo/Power/Voltage/Package can customized if you need,befor order please tell us you requirements)
