Factory Supply Cattle Feed Pellet Machines Animal Feed Making Machines with Good Quality

Factory Supply Cattle Feed Pellet Machines Animal Feed Making Machines with Good Quality

US$8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SZLH320 SZLH350 SZLH420 SZLH508 SZLH558 678 768
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Wet Expansion
Condition
New
Applicable Materials Shape
Short strip
Warranty
2 Years
Material
Ss 304 for Feeder, Conditioner, and Pressing Door
Brand of Motors
Siemens or China Top Brand
Brand of Bearings
NSK
Transport Package
Iron Box or Wooden Case
Trademark
IKLAY
Origin
China
HS Code
843880
Production Capacity
200sets/ Year

Product Description


1. Technical Parameter
Item Technical parameters and performance index
SZLH250 SZLH320 SZLH350 SZLH400 SZLH420 SZLH508 SZLH558 SZLH678 SZLH768
Capacity(t) 1-1.5 2-5 2-7 3-12 3-14 4-20 4-22 8-28 10-35
Power(kw) Main machine 15 37 55 75/90 90/110 110/132/160 132/160/200 200/220/250 250/280/315
Screw feeder 0.55 0.75 0.75 1.5 1.5 2.2 2.2 2.2 2.2
Conditioner 2.2 2.2 3 5.5 5.5 7.5 7.5 11 11
Inner diameter of die(mm) 250mm 320mm 350mm 400mm 420mm 508mm 572mm 678mm 768mm
Effective width of die(mm) 120mm 120mm 120mm 120mm 120mm 150mm 200mm 180mm 210mm
Pellet size(mm) 1-12mm 1-12mm 1-12mm 1-12mm 1-12mm 1-12mm 1-12mm 1-12mm 1-12mm
No. Of press roll 2 2 2 2 2 2 2 2 2

2. Features 2.1.Screw feeder,Conditioner, Chute and Pressing door of this feed pellet machine are full polished stainless steel, more durable and corrosion resistant.

2.2.Screw feeder is controlled by frequency conversion inverter to control feeding speed& capacity and ensure feeds quality, and equipped with permanent magnet to remove iron impurities.

2.3. Applicable for all kinds of poultry feeds/ livestock feeds/ high grade aqua feeds. Single, double or three layers of conditioners are optional. Conditioners with several steam adding inlets, to ensure fully ripening and gelatinization, with good conditioning effect.

2.4.Adopting high accurate and efficient gear drive,with an output of about 20% higher than belt drive,and ring die adopts the quick removing clamps.

2.5. Big gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.

2.6. Main spare parts, such as ring dies& rollers etc. are produced strictly according to high quality standard. Ring dies are produced by automatic CNC gun drill machine&coutersinking machine, heat treatment by vacuum furnace, with long service life and making good feeds.

2.7.Configurable oil circulating cooling system, in order to enhance the cooling and lubrication effect of the main drive system of bearing. The device can work smoothly for a long time.

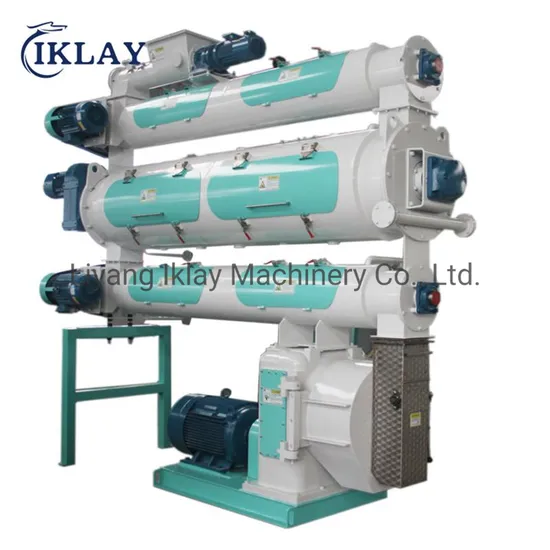

3. Photos of feed pellet mills and feed plant
4. Delivery
Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.
