Machinery Over All Hot-DIP Galvanized Fecal Water Backwash Airbag Valve

Machinery Over All Hot-DIP Galvanized Fecal Water Backwash Airbag Valve

US$930.00 1 Set (MOQ)

Basic Info.

Model NO.
CSF-001
Usage
Control The Wanter Flush
Application
Cow
Power Source
Air
Heating and Ventilation Equipment Type
Control The Wanter Flush
Epidemic Prevention Equipment
Control The Wanter Flush
Blade Type
Control The Wanter Flush
Computerized
Non-Computerized
Certification
ISO9001:2008
Condition
New
Warranty
3 Years
Customized Support
OEM
Frame Material
Hot-DIP Galvanized Steel
Lead Time
1 Week
Life
> 10 Years
Transport Package
Pallet/ Wooden Box
Specification
380mm
Trademark
JG
Origin
China
HS Code
8479909090
Production Capacity
30000/Year

Packaging & Delivery

Package Size
84.00cm * 52.00cm * 48.00cm
Package Gross Weight
106.600kg

Product Description

Product Introduction
Flush valve:Connected with flushing pipeline (PE315), pneumatic quick release type, each flush valve is equipped with a pneumatic airbag, which can quickly open or close the flush valve.During flush, the airbag deflates, the valve open, and flushing begin. After flush, the airbag inflates, the valve close.
When no flush,the top cover plate is flat with ground, and the surface of the top cover plate is anti slip, prevent cows from slipping.
Air source: from the air pump of the buyer.
Composition: flush valve, top cover plate, cover plate fixing bolts
Flush valve: over-all hot-dip galvanized, inner diameter: 210mm, outer diameter: 380mm, thickness:15mm
Cover plate: 4.75mm thick hot-dip galvanized steel plate, 800x800, connected by hinge
Cover plate fixing bolt: SUS304 countersunk hexagonal bolt
Component Name attribute value
gasbag diameter 189mm
Minimum height 140mm
Height after inflation 160mm
Capable of withstanding pressure 3000kg
texture of material Natural rubber
Airbag frame texture of material Hot dip galvanizing
Specifications 380mm x 380mm x 385 mm
Inlet diameter 250mm
Cover plate specifications Specifications 800mm x 800 mm x6mm
workmanship galvanized corrugated sheets
Overall components weight 45kg
service life More than 10 years

Assembling drawing as below:
Water pipe and air pipe all pre embeded under ground,less damage will be caused to the pipes;
If there is any problem with the flush valve,just open the top cover plate for the checking or repairs;
More than 10 years, dairy farm with our flush valve had no problems

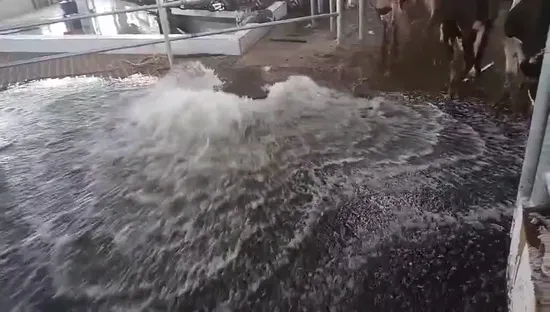

Application
Company Profile
FAQ Q1. Are you a factory or trading company?
A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?
A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?
A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.Q4: What can you by from our company?
A:Dairy farm design and diary farm equipment: such as rolling curtain, cow fan/ventilation fan, ceiling fan, cow headlock, cow free stall, cow brush,manure scraper, bedding recovery system, manure separator, cow mat,etc.
