High Speed Guide Roll for Paper Making Machine

Product Description

Company Profile Who we are?
Over 40 years of experience in making rolls for Paper making machinery industry. But we don't just manufacture rolls for using in Paper Production, we also have rich background in Film stretching lines, Non-woven production lines.
Roll for High speed culture paper machine
Roll for High speed board paper machine
Roll for High speed tissue machine
Roll for Pulp machine
Roll for High speed reel
Roll for High speed rewinder machine Our Advantages Our strength:
Max roll/cylinder face length 11900mm
Max roll/cylinder OD 2000mm
Max balancing speed 3000m/min( Roll for Rewinder machine) Certifications General System certification:
ISO9001:2015
ISO14001:2015
ISO45001:2018
ISO50001
The following enterprises periodically audit our company:
Valmet
Andritz Product Parameters Guide roll ,Felt Roll , Wire Roll

Max Face Length	12000mm
Roll diameter	200-2000mm
Coating type and thickness	Customer's requirement or Daxing design
Dynamic Balancing	G1.0, with dynamic deflection curve, other info required by customer
Roll body material	Q235B,Q345B
Shaft head	Cast steel/Forged 42CrMo
Bearing and bearing housing	can be included

Contact us with more details .

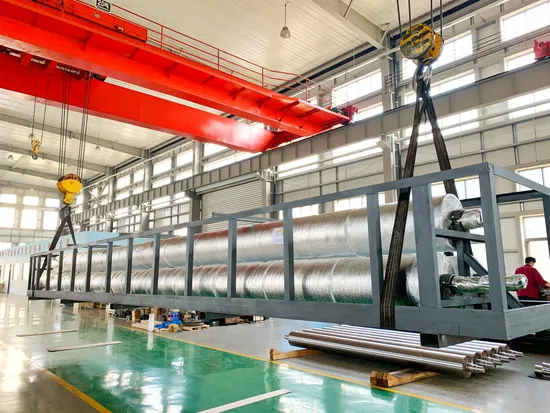

Main Processing Machine Company photo Packaging & Shipping
