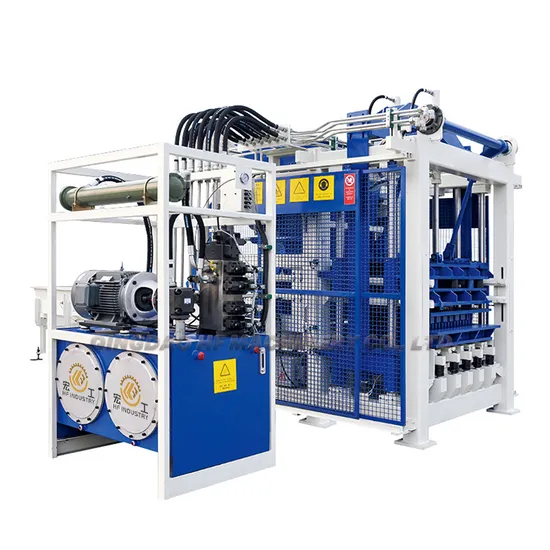

Brick Making Machinery Paving Stone Making Machine with Good Quality

Product Description

1. Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:
A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.

Pallet dimension:	1200x870mm
Production area:	1100x820mm
Block height:	50-300mm
Cycle time:	15s for hollow block
	18-20s for paver with facemix
Production	400x200x200mm hollow block
	10 pcs / mould, 19,200 pcs / 8h
	200x100x60mm paver with facemix
	35 pcs / mould, 50,400 pcs / 8h
Bottom vibration:	Siemens Motor
Top vibration motor:	Italy Motor

Welcome to our company, we are a group of creative people.
QINGDAO HF MACHINERY, CO.LTD is the professional manufacturer and exporter of blook machine technology.We are always developing advanced products internationally standards to meet consumer demands. We have exported to more than 116 countries from the Philippines, usia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile. and have excellent reputation among customers.
