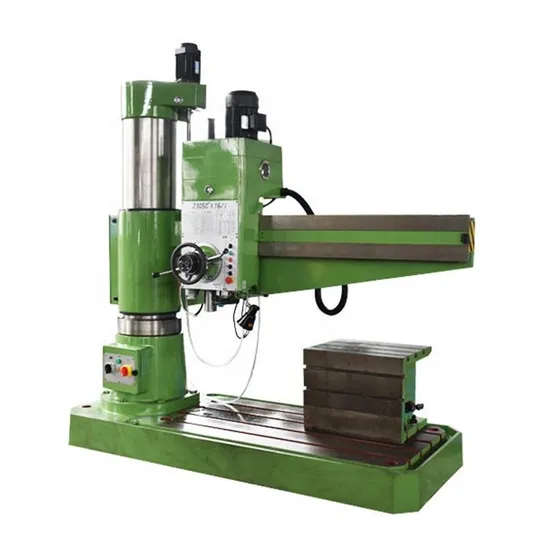

Low Price Radial Drilling Machine (URD25) of China of Smac

Product Description

Product Description
Model Z32kPorble Type Universal Radial Drilling Machine:
The machine can be used in any direction to act on the workpiece for dirlling. Reaming, spotting and thread tapping.
Suitable for small-lot protting and thread tapping.
Suitable for small-lot production and for machining large-sized and heavy-duty workpiece in assembling and repair shop.
The arm can lifting rapidly and operate easilly.
Radial drilling machine is a kind of drilling machine in which the rocker arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on vertical drilling machine, the alignment of tool and workpiece is realized by the movement of workpiece, which is obviously very inconvenient for some large and heavy workpieces.

Model		URD25
Max. drilling dia.	mm	25
Distance of spindle centre line to column surface	mm	330-820
Distance of spindle nose to table surface	mm	820-860
Taper hole of spindle		Morse No.3
Spindle speed	r/min	175, 425, 687, 960
Travel of spindle	mm	130
Swivel angle of arm	deg	360
Size of table (L x W)	mm	600 x 520
Main motor power	kw	1.5
Net weight	kg	820
Gross weight	kg	1300
Overall dimensions (L x W x H)	mm	1768 x 725 x 1984
Packing box dimension (L x W x H)	mm	2040 x 976 x 2428
Old model		Z32K
