Xk715 CNC Heavy Duty Bed-Type Universal Milling Machine for Sale
Basic Info.
Model NO.
XK715
Type
CNC Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
CNC Heavy Duty Bed-Type Universal Milling Machine
X/Y/Z Axis Travel
610/650/660mm
Worktable Size
500X2100 mm
Motor Power
7.5 Kw
Weight (Kg)
7300 Kg
Table Travel (Y) (mm)
360mm
Spindle Taper
ISO50
Delivery Time
One Month
Voltage
Customized
Range of Spindle Speed(r.p.m)
35-1345
Max. Table Load(Kg)
2000 Kg
Transport Package
Wooden Case
Specification
500x2100mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
365.00cm * 238.00cm * 275.00cm
Package Gross Weight
7300.000kg
Product Description
XK715 CNC heavy duty bed-type universal milling machine for sale
Standard accessories:
ISO50 spindle
Table size 2100*500mm
Max. load of table 2000 kgs
X/YIZ 3-axis hardened guideway covered with Turcite-B
Work lamp
Coolant system
Electric hand wheel
Stepless longitudinal and cross feed

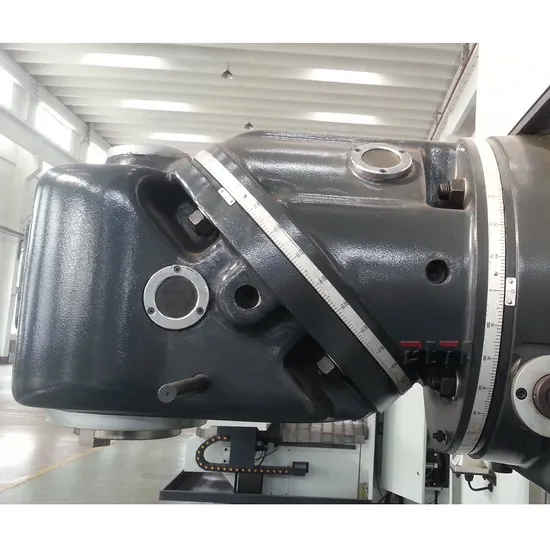

Universal mill head
Horizontal counter bearing
Long milling arbor ISO50/ 32 mm
Taper shell end mill holder ISO 50/40 mm
Telescope cover in Z-axis
Semi-cover universal protective device
Protective cover for horizontal milling
Automatic central oil lubrication
Tools & Tool box
| Items | Units | XK715 |
| Table size | mm | 2100x500 |
| Table stroke(X.Y) | mm | 1500x550 |
| T-type slot numbers / width /space | mm | 4-20-100 |
| Max. load working table | kg | 2000 |
| Distance from spindle axis to column guide way | mm | 610 |
| Distance from spindle nose to table surface | mm | 0-650 |
| Distance from spindle axis to table surface | m/min | 8-660 |
| Feed speed(X.Y) | mm/min | 2.5-3000 |
| Feed speed(Z) | mm/min | 2.5-2500 |
| Rapid feed speed(X.Y.Z) | mm/min | 6000/6000/3000 |
| Spindle taper | ISO50(7:24) | |
| Spindle speed range | rpm | 35-1345(12 steps) |
| Spindle motor power | kw | 7.5 |
| Feed motor power | kw | 2.5 |
| Coolant motor power | W | 550 |
| Positioning accuracy | mm | ±0.04 |
| Repeat positioning accuracy | mm | 0.02 |
| Overall dimensions(Lx W x H) | mm | 3650x2380x2750 |
| Machine weight | kg | 7300 |
