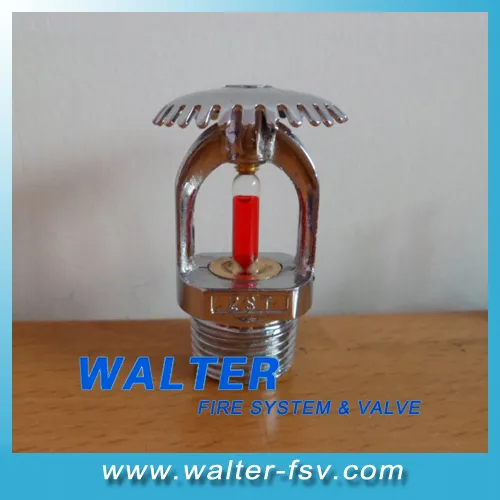

Fire Fighting 68 Degree Sidewall Sprinkler for Fire Security

Product Description

Fire Fighting 68 Degree Sidewall Sprinkler For Fire Security
1- Body: Brass
2- Glass bulb: Job brand or YD brand (3mm or 5mm diameter)
3- Size: NPT or R1/2", 3/4", 1"
4- Working Temperture: 135F/57C; 155° F/68° C; 175° F/79° C; 200° F/93° C
5- Finished: Brass or Chorme Plated, White
Style
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
Suzhou Walter Flow Control Equipment Co., Ltd. Which is a professional company and specialized in fluid equipment & firefighting equipment field. We are and always fashioning our long time business relationship from the advanced technology, excellent quality and good service.
Walter supply FM Approved, UL Listed, CE and relevant certificate products in Water Treatment Systems, Firefighting Project, High Buildings, Oil and Chemical Industry field.
Valve Products:
Gate Valve, Butterfly Valve, Check Valve, Ball Valve, Automatic control valves, Global Valve, Knife Gate Valve, Strainer, Flange and Pipe Fittings
Firefighting Products:
Firefighting Sprinkler System ( fire sprinkler, wet alarm valve, deluge valve, water flow detector, gate valve, butterfly valve etc...), Foam Fire Extinguishing Systems ( CO2 fire extinguishing equipment, pressure foam proportioning device ), Air Fire Extinguishing Systems ( FM200/HFC-227ea Systems ) and Fire Hydrant, Fire Hose, Fire Monitor etc;
Material: Cast Iron, Ductile Iron, WCB, Stainless Steel.
Cooperation create value, Walter always for the sake of customer, Choose Us, Reap Success.
For more information, please contact us directly.
