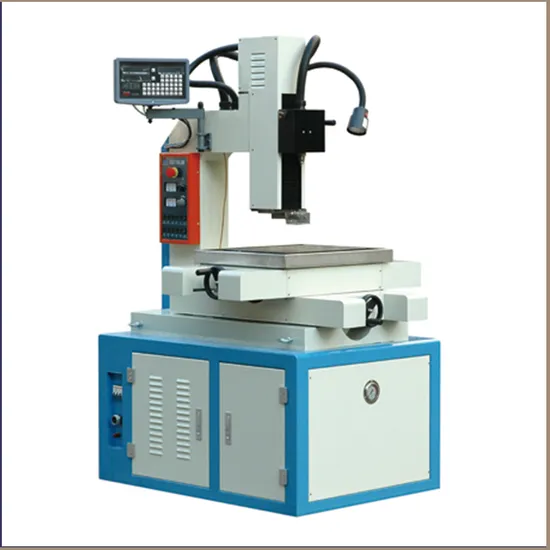

High Speed EDM Drilling Machine Price
| US$4,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
DD703
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
0.3~3.0 mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Worktable Travel(X *Y)
200*300 mm
Main Spindle Speed
60 Rpm
Water Tank
25L
Power Supply
3n-380V/50Hz
Transport Package
to Be Packed in Wooden Cases, Suitble for Export
Specification
1060*750*1700 mm; weight 536kg
Trademark
TOPSCNC
Origin
Taizhou, Jiangsu, China
HS Code
8456301090
Production Capacity
100set/Month
Product Description
Technique parameters
| Technique parameters | unit | DD703 | DD703.30 | DD703.32 | DD703.40 |
| Worktable size | mm | 320x440 | 320x440 | 360x610 | 460x690 |
| Worktable travel | mm | 200×300 | 300×400 | 320×400 | 400x500 |
| Z-axis travel | mm | 280 | 300 | 300 | 300 |
| Max.load on table | mm | 200 | 200 | 200 | 200 |
| Main spindle speed | rpm | 60 | |||
| Diameter of electrode | mm | φ0.3-φ3 | |||
| MAX.distance from guider to worktable | mm | 240 | 300 | 400 | 500 |
| water tank | L | 25 | |||
| Filtering model | Shallow-gap filter | ||||
| Working medium | water | ||||
| MAX.working pressure | Mpa | 7 | |||
| Power supply | 380V,3Ph,50Hz | ||||
| Max.woking current | A | 30 | |||
| Power consumption | Kw | 3 | |||
| Machine weight | kg | 700 | 850 | 1300 | 1700 |
| Machine demensions | mm | 1060×750×1700 | 1060×750×1760 | 1550×1170×1800 | 1800x1380x1800 |
Products advantages
1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc
2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more. 3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces. 4) It can water as workingfluid.5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.
Our Factory
Our Services
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 20--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
