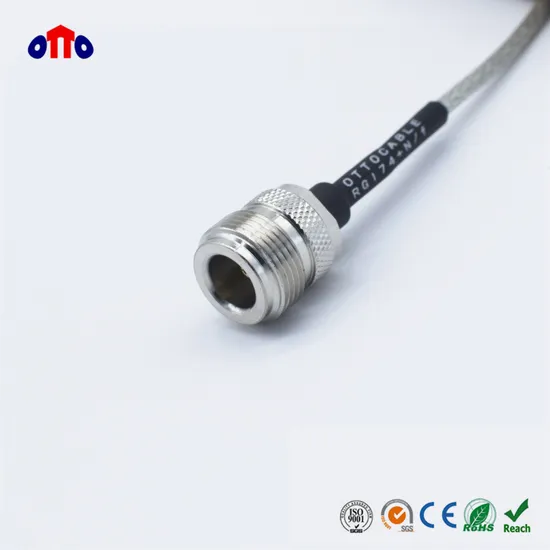

50 Ohm Coaxial Cable RG174 for Antennas

50 Ohm Coaxial Cable RG174 for Antennas

US$0.05-0.25 5,000 Meters (MOQ)

Basic Info.

Model NO.
RG174
Type
RG174
Material Shape
Round Wire
Conductor Type
Stranded
Wire Core Material
BC/TC
Certification
CE, RoHS, Reach
Model
RG174
Brand
Otto Cable
Transport Package
Pallet; Carton; Coil
Specification
2.8mm
Trademark
OTTO CABLE
Origin
China
HS Code
854420
Production Capacity
200km/Day.

Product Description


RG174 Antenna Cable for GPS/ GSM
Construction
Item Material Diameter(mm)
Inner Conductor
Dielectric
Shield
Jacket
Bare Copper / Tinned Copper
Solid PE / XLPE
Bare Copper or Tinned Copper Wire Braid
PVC
7*0.16
1.52
1.90
2.80

Electrical Characteristics
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Installation Temp(ºC)
Operating Temp(ºC)
50±3
101
66
20
-30 to +85 / 105
-30 to +85 / 105

Attenuation (@20ºC)
Frequency(MHz) Max Attenuation(dB/m)
400
600
860
1000
1575
0.62
0.72
0.90
1.00
1.10
