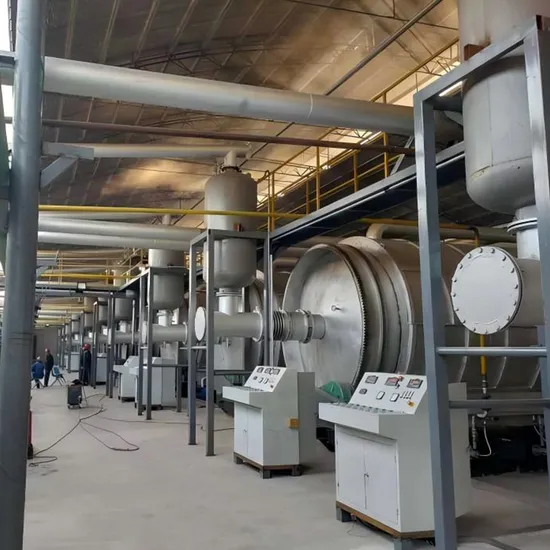

Batch Pyrolysis Machine Waste Plastic Pyrolysis Equipment with Waste Tire Pyrolysis Plant to Produce Fuel Oil

Product Description

Product Information -What is Plastic Pyrolysis Plant? Waste plastic pyrolysis plants are facilities that convert many types of waste plastics into useful substances without releasing harmful by-products. This process, called pyrolysis, uses controlled heat to break down the large molecules in the plastic into smaller components that can be used for a variety of purposes. The main source of fuel for the pyrolysis plant is plastic waste,which can be converted into oil. -Raw Materials: Waste Plastic Types PE, PP, PS, ABS - Recommended to produce pyrolysis oil
* Recommended for their high oil yield during decomposition. PVC - Not suitable for pyrolysis
* Contains chlorine, and during decomposition, it releases hydrogen chloride, which can corrode pipes and equipment.
* Combustion of decomposed PVC can release carcinogenic dioxins. PET - Not suitable for pyrolysis
* Does not yield oil during decomposition.
* Releases oxygen during the decomposition process, posing a safety hazard.
Final Product Applications 1.Fuel Oil (40%-45%): Known as fuel oil, pyrolysis oil, heating oil, furnace oil. Used as industrial fuel for cement plant, steel
plant, metallurgical plant, glass plant, power plant etc.
2.Carbon Black (30%):Used as raw materials for rubber and plastic industries after further processing. Or used as heating fuel.
3.Flammable Gas or Steel wire(25%-30%): Known as combustible gas or non-condensable gas. Routed to gas burners of heating system as fuel supply. Product Description

Model	BN-PR-3	BN-PR-6	BN-PR-10	BN-PR-15
Processing capacity	3 Tons	6 Tons	10 Tons	15 Tons
Reactor size	1500*3500 mm	2400*5000 mm	2600*6600 mm	2800*8000 mm
Pyrolysis time	3-4 h	4-6 h	6-8 h	8-10 h
Feeding time	0.5 h	0.7 h	1 h	1 h
Cooling time	3-4 h	4-5 h	4-5 h	5-6 h
Discharging time	0.5 h	0.7 h	1 h	1 h
Power needed	12.5 Kg	18.6 Kg	32.5 Kg	35.5 Kg
Water consumption	100 Kg	300 Kg	500 Kg	500 Kg
Fuel consumption	30 Kg/h	40 Kg/h	60 Kg/h	90 Kg/h
Area covered(W*L)	2.3X11.5 M	8X22 M	8X30 M	8X30 M
Applicable initial heating fuel	Natural gas/LPG/Diesel/Pyrolysis oil
Noise(dB)	≤80dB
Working process	Batch type
cooling method	Water cooling

Pyrolysis machine advantage and main technical characteristics1. Rapid condensers and large cooling area,assure you get much more and higher quality oil. 2. High oil output rate 45%--55% with special catalyst formula and high tech . 3. Double tail-gas recycling and burning system, saving energy. 4. Each set of equipment is equipped with two water seals, which can prevent the return of combustible gas, and is equipped with a pressure alarm device. 5. Q345R boiler plate, high temperature resistance, thickness reaches 16mm-18mm,guarantee 4-7 years service lives. 6. Eco-friendly and no any pollution, environmental protection. Packaging & Shipping
Company Profile
The BNTET renewable energy equipment is a new type of energy-saving and high-efficiency equipment jointly developed by "Heat Technology Energy Company" and "Henan Polytechnic University". The core components of the equipment are all independently researched,designed and produced.
The main products include: pyrolysis furnaces, cracking furnaces, gasification furnaces, carbonization furnaces, incinerators,burners, heat exchangers, oil condensation and recovery devices and their auxiliary equipment. BNTET has a powerful R & D and technical team. Before the production of each piece of equipment, the professor team conducts a 1:1 numerical simulation thermal analysis. Through the numerical simulation of multiple fields such as cold and hot flow fields,temperature fields, and component fields, the structure of the furnace and the structure of the burner are optimized to achieve an excellent theoretical numerical design.
BNTET also has 15 years of experience in designing and producing burners. The burner is a core accessory of the pyrolysis furnace,and its combustion efficiency and combustion stability affect the operation of the entire set of equipment. According to the characteristics of the pyrolysis furnace, BNTET has designed and produced a burner specifically for the pyrolysis furnace.Compared with ordinary burners, it can save more than 10% of energy, provide the most suitable air-fuel ratio, save costs for users, and is safer, more energy-efficient, more efficient and more environmentally friendly.
With a strong theoretical and technical team, years of production practice experience, rich engineering installation experience and a customer-oriented work concept, BNTET is looking forward to achieving win-win cooperation with you!
