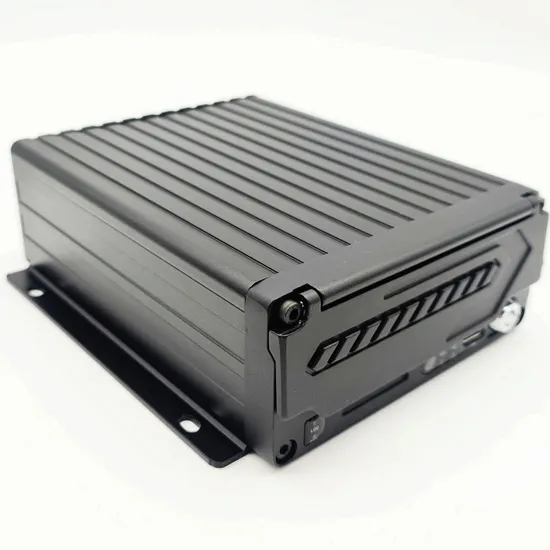

Factory Direct SD Card/ HDD Mdvr Ahd 720p/1080P Mobile DVR with 4G GPS WiFi Optional for Car Fleet Management CCTV DVR
Basic Info.
Model NO.
FL-H10-04
Interface
BNC\VGA
Operating System
Linux
Number of Supported Hard Disk
SD Card & HDD
Compression Format
H264/H265
Certification
FCC, CE, RoHS, ISO
Warranty Time
One Year
Stream Type
Video Flow
Input Channels
4
Interface Display
Four Images
Brand
FL
Product Name
SD Card HDD Mdvr 720p/1080P Mobile DVR
Network
4G GPS WiFi Optional
Ai Camera
Adas DMS Optional
People Counter
Support
Transport Package
Carton
Specification
30cm*25cm*15cm
Trademark
NO
Origin
China
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
40.00cm * 35.00cm * 30.00cm
Package Gross Weight
2.000kg
Product Description
Factory Direct SD Card HDD MDVR 720P/1080P Mobile DVR with 4G GPS WIFI Optional Detailed PhotosDetails Images
Product Description
Product Parameters
Parameters
| Item | Parameter | Description |
| System | Operational language | Chinese. English, Others (customizable) |
| Operation interface | Graphical menu operation interface (OSD menu) | |
| Password security | Two-level management of user password and administrator password | |
| Video | Video input | 4/8 video input |
| Video output | There are two video output modes of VGA and aviation head interface | |
| Video resolution | Support 1080P. 720P, D1, HD1, CIF, etc | |
| Video loop recording | Support SD card automatic loop recording and loop overlay (auto default) | |
| Video mode | Support boot recording, timing recording, alarm (trigger) recording | |
| Image compression | H264/H265 | |
| Display | Preview features | Supports single and multi-view |
| OSD overlay display | Channel name, time, recording status, resolution, license plate, GPS information, etc | |
| Alarm | IO alarm | 4 IO alarm inputs, with alarm linkage function |
| Communication interface | RS232 interface | 1CH RS232, expandable card machine, oil sensor, LED advertising screen, etc |
| RS485 interface | 1-way 485 interface, expandable gimbal | |
| AI capabilities (Extensible) | Passenger counting | 1 door passenger counting |
| 2 doors passenger counting | ||
| 3 doors passenger counting | ||
| 4 doors passenger counting | ||
| DMS | Fatigue (closed eyes, hatcher) detection alarm | |
| Occlusion camera detection alarm | ||
| Receiving and receiving phone calls to detect alarms | ||
| Face loss detection alarm | ||
| Distraction detection alarm | ||
| Smoking detection alarm | ||
| ADAS | Occlusion camera detection alarm | |
| Lane departure detection alarm | ||
| Pedestrian detection warning | ||
| Vehicle distance detection and warning | ||
| BSD | Left blind zone detection alarm | |
| Right blind zone detection alarm | ||
| Platform | Remote monitoring platform | Real-time monitoring, monitoring intercom, playback, video, high-definition screenshots, GPS data, alarm data upload |
| Others | Power consumption | ≤10W |
| Operating temperature | -20ºC to +70ºC | |
| Operating humidity | 20% to 80% | |
| Size | 161 (D)* 159(W)* 63(H) mm | |
| Net weight | 1.119KG | |
| Power input | DC +10V - +36V |
Installation Instructions
Function
MDVR FUNCTION
Certifications
Company Profile
