Agricultural Equipment Corn Maize Tianren Head of Large Wheat Corn Rice Harvester

Product Description

Product Description

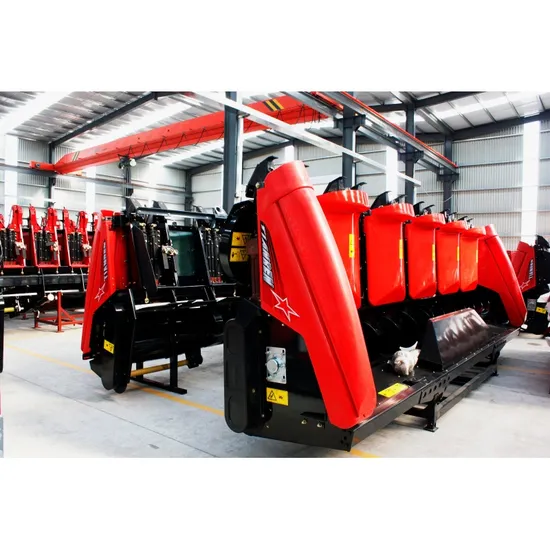

Fourth generation corn header FG 1.The header has a universal design, and the same header can be equipped with different mounting brackets and accessories to fit different models of large combine harvester as J ohn D eer and C ase IH.
2. The transmission gearbox and chopping gearbox are separately designed with low correlation and high stability, and the power transmission route is short.
3. The pre-positioned chopper has a built-in separation switch, which has good adaptability, lower stubble cutting, and a smoother stubble cutting after harvest.
4. The stalk roller is an 8-edged knives design, making the snapping more stable and reducing the amount of broken stems.
5. The adaptive floating ear stripper plate (which can float up, down, left, and right within a certain range) can effectively avoid the problem of too large or too small gaps between the ear picking plates, and can also provide effective buffering for the ears to reduce the impact and seed loss.
6. The entire header is chainless power transmission and all gearboxes are enclosed.
7. The weight of the 12-row corn header is about 3.45 tons, making it lighter.
8. It can be equipped with row spacing (mm) of 500, 550, 600, 650, 700, 750, etc., twin rows design available.
9. It can be equipped with self-adjusting height sensors and hydraulic drive side auger.
10. It can be equipped with stompers.

Item Unit Data Model / TR1688-12. Harvesting rows row 4. 5,6.7.8.10.12.14.16 can customized Row space mm 505,520,550,600,650,700,750 for choice or customized Weight of each rows kg 290-340 Feeding quantity Kg/s 3.0-4.5 Minimum harvesting height mm 200 Ear loss rate % Overall size mm L Row space*(rows number-1)+880*W2850*H1300 Compatibility / Different brand can customized

Detailed Photos

Company Profile

Tianren is located in Gaocheng District Hebei Province in China.It is a modern agricultural machinery enterprise integrating research and development, manufacturing, sales, and service.
Its main products include TR series 3-8 rows self-propelled corn combine harvesters and TR series 3-16 row corn headers,which can match domestic or foreign large scale combine harvesters,and meet the needs of different areas customers.
Packaging & Shipping

After Sales Service

We can supply on-line guide service and off-lian local service if there is a dealer in your country.
