PC/Upc/APC Sc/LC/FC/St/Mu/MTRJ/E2000 Simplex Duplex Singlemode Multimode Fiber Optic Patch Cord

Product Description

Our offers a wide range of patch cords, designed and manufactured for demanding network applications. It comprises of
multimode and singlemode. Both ends are terminated with a high performance hybrid or single type connector comprising
of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex.
Standards Compliance
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode
optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (Insertion Loss Customer specified length & Return Loss)

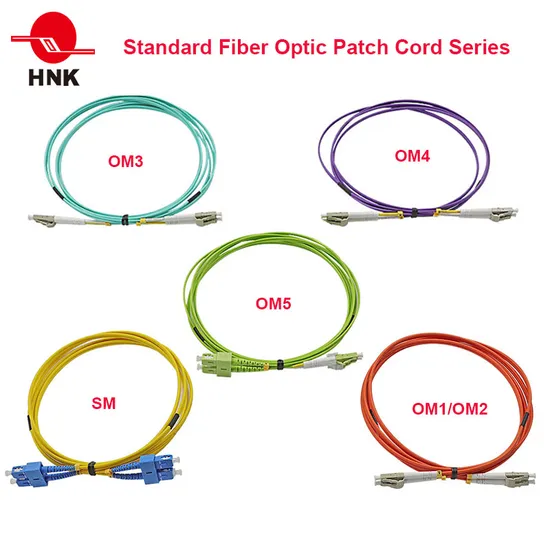

. Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
. PC, UPC, APC connectors type available
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
. Available in G652D, G657A, OM1, OM2, OM3 and OM4
. Position A/Position B markings
. Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes
Mechanical, Environmental & Material Data

Range of Mode	Singlemode or Multimode
Cable Type	Simplex or Duplex Zipcord
Connector Style	SC, FC, ST, LC, MU, MTRJ, E2000, DIN
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Diameter	0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Lengths	Standard & Custom Lengths
Strength Member	Aramid Yarn
Outer Jacket	PVC or LSZH
Cable Assembly Length (<15 meter Tolerance)	-0/+100mm
Cable Assembly Length (>15 meter Tolerance)	-0/+10%
Jacket Color (Multimode: OM1 & OM2)	Orange
Jacket Color (Multimode: OM3)	Aqua
Jacket Color (Multimode: OM4)	Aqua or Purple
Jacket Color (Single Mode: G652D & Gb57A)	Yellow
Durability	500 cycles(0.2 dB max increase), 1000 mate/demate cycles
Operating Temp.	-20 C to +70C/+85C (armoured)
Storage Temp.	-40 C to +85C
Ferrule Concentricity	< 1μm, Other Ferrule Concentricity < 1μm
Humidity (FOTP-5)	90-95% at 40°C
Strength of Coupling Mechanism (FOTP-185)	33 N at 0° for 5 sec
Cable Retention (FOTP-6)	50 N at 0° for 5 sec.
Twist (FOTP-36)	15 N at 0° 5 turns, 10 cycles
Flex (FOTP-1)	0.5 Kg at 25 cm, +90° to -90°, 100 cycles

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.2dB Max. (0.15dB typ.)			0.3dB Max. (0.25dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	N.A
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)			0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N			≥98N

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: PC-AA-BB-CDEFGCL
Ordering Guide

AA	BB	C	D	E	F	G	CL
Connector Type	Connector Type	Fiber Type	Fiber Count	Boot fit for cable diameter	Length	Jacket Materia	Jacket Color(CL)
FP,SP, SA,LP	FP,SP, SA,LP	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	SX=Simplex DX=Duplex 4F=4 cores 6F=6 cores 12F=12 cores	09=0.9mm 16=1.6mm 20=2.0mm 30=3.0mm	0015=1.5M 0200=20M	1=PVC 2=LSZH 3=PE	As noted in Color code chart

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC
MU	MU	DN	DIN	MT	MTRJ	E2	E2000

Color Code
Note:Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
Ordering Sample

Part Number	Description
PC-SP-LA-G652DSX3000302YE	SC/PC-LC/APC Fiber Optic Patch Cord, Singlemode G652D, Simplex, 3.0mm, LSZH, Yellow, 3M.
