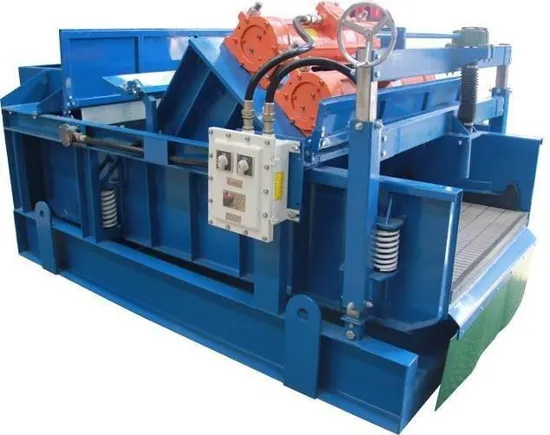

Zs Series Linear Motion Small Shale Shaker
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZS
Type
Heavy Crude Oil
Application
Oil Product, Base Oil, Derivatives, Industrial Lubricant
Material
Steel
Transport Package
Standard Packed
Specification
Alloy
Trademark
Beyond
Origin
China
Production Capacity
100 Sets/Year
Product Description
Product Parameters
Main Technical Parameters:
| Model | ZS280-3P | ZS270-4P | ZS240-3P | ZS220-3P | ZS180-2P |
| Motor power | 2×2.2 kW | 2×2.2 kW | 2×2.2 kW | 2×2.2 kW | 2×1.3 kW |
| Screen area(m2) | 3×0.833×1.15 | 4×0.585×1.165 | 3×0.7×1.15 | 3×0.7×1.05 | 2×0.833×1.15 |
| Shaking intensity(g) | 7.2 g | 7.2 g | 7.2 g | 7.2 g | 7.2 g |
| Discharge capacity | 42 l/s | 40 l/s | 35 l/s | 30 l/s | 26 l/s |
| Adjustable range | -2°~+6° | -2°~+6° | -2°~+6° | --2°~+6° | -2°~+6° |
| Overall dimension,mm | 3140×1980×1540 | 2970×1980×1530 | 2700×1980×1540 | 2700×1900×1540 | 2300×1940×1300 |
| Weight | 2000 kg | 2000kg | 1900kg | 1700 kg | 1200kg |
The shale shakers were solely designed and manufactured by our company but with the advantages of same international well-known products, containing more than one patents.
The shale shakers being provided with high vibration intensity , adjustable-pitch ,compact, reliable ,behavior and cost effective ,is known as a competitive product in the international market.
