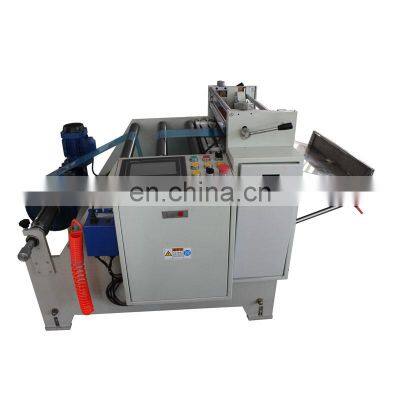

Non Woven Fabric Roll To Sheet Cutting Paper Roll Cutter

Product Description

Product Description
SpecificationProducts DescriptionTechnical parameters:Item NumberDP-360CQDP-500CQDP-600CQWeb Width0-360mm0-500mm0-600mmCutting length0-9999.99mm0-9999.99mm0-9999.99mmCutting speed0-130 cut/min0-130 cut/min0-130 cut/minCutting precision±0.05mm±0.05mm±0.05mmVoltage220V/380V220V/380V220V/380VSize1280*920*1300mm1280*1150*1070mm1500*1300*1200mmWeight240kg270kg320kgTotal Power1.5kw1.5kw1.5kw*the voltage can customize according to your country standards.Features:Taiwan brand servo motor & Japan brand mitsubishi PLC;Touch screen control panel,easy to operate;Can preset and adjust the cutting length ,total cutting quantity and speed;Afer the machine shutting down,it still can remember the amount automatically;Cutting tolerance can be reach ±0.1mm based on material;Optional function:Kiss cut (half-cut)Hot cuttingStatic electricity eliminatorCutting with position sensorApplication:Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.Optional DevicesKiss cutting Material:Utility knife and fixtureThis unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.Photo sensorIf added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.ANTISTATIC SYSTEMBEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM ANTI-STATIC SYSTEM MOTORAfter Sales Service Free sample testing and video for your reference Prompt delivery whthin 24 hours One year warranty ,whole life technical support Free training in our factory available before delivering machinesEngineers available to service machinery overseas Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.BUYING GUIDEIf you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .MaterialPictures are appreciated if possible Diameter ID & OD Thickness mm Weight KGLength you want to cut mmWidth mmProduct DescriptionSpecification360mm automatic paper roll to sheet cutting machine FUNCTIONAL CHARACTERSTICSThis machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,which will be easy to load and unload. PurposeIt is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, rubber sheets,electronic tape and various inch setting, entirely broken and partially broken electronic materials. Item No DP-360 PRICE shipping term (FOB Shanghai) Max Feeding Width ( mm ) 360 Main Engineer Power ( w ) 750 Speed ( m/m ) 120 Size ( mm ) 1150*1100*1120 Weight ( kg ) 350 Precision ( mm ) ±0.10 Power 380V 50HZ Shaft diameter 3 inch / 76mm unwinding paper diameter 600mm max (unwind like below)Advantage of machine DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when running it is whole part of steel sheets , not welding together PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part Korea company made Cutting motor ------------- Taiwan Tonglee gear motor Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety 12 month electronic parts guarantee after machine arrived your place machine are use famous brand of electric parts which are easy to maintenancePacking & DeliveryTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company ProfileBUYING GUIDE1, material name :2, material roll diameter :3, material roll width :4, material roll weight :5, maximum and minimum length required to cut
