Jwell 30liter Automatic HDPE Bottle Blow Molding Machine 4 Cavity HDPE Plastic Chemical Packaging Jerrycan Blowing Making Production Extruder

Product Description

Product Description

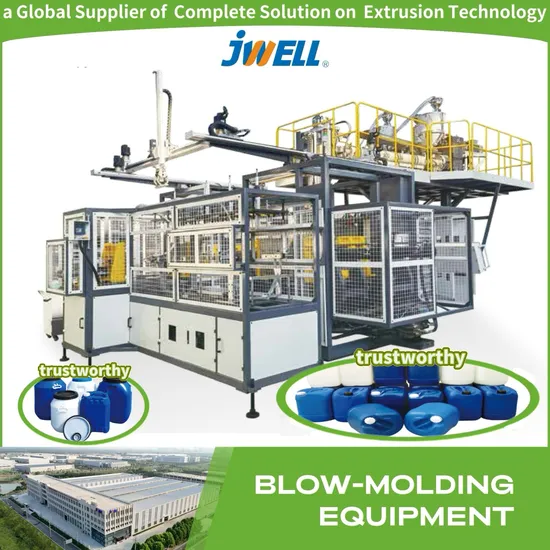

JWELL-BM30 Four Station Three Layer Blow Molding Machine
Single station/double stations/three stations/four stations operation can be performed inde.
pendently and in any combination.
Product photos
Performance and advantages
1.Suitable for producing 10-30L different size Chemical packaging jerrycan.
2.Adopt continuous type die head, up-blowing structure, convenient for product auto-deflashing on-line, flashconveying on-line, finished product leak testing on-line, conveying ,etc. Reducing the labor cost and increasingthe production efficiency.
3.Optional multi-layer co-extrusion system.
4.Optional view strip line system.
5.Can be upgraded to all-electric solution. Technical parameters

Technical parameters
Model	Unit	JWELL-BM-30D
Max product volume	L	30
Die head structure	--	Accumulating Type
Main screw diameter	mm	100/120/100
Max plasticizing capacity (PE)	kg/h	780
Driving motor	Kw	75/110/75
Oil pump motor power(Servo)	Kw	22
Clamping force	KN	240
Space between platen	mm	450-950
Platen size W*H	mm	600*640
Max.mould size	mm	580*640
Heating power of die head	Kw	25
Total power	Kw	410
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

Company Profile
JWELL is a global supplier of complete solutions on extrusion technology.
Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world. Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. Based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.

FAQ
