FTTX Optical Splice Communication Box 16 Ports Compact Fiber Optic Termination Box

Product Description

Product Description FTTx Optical Splice Communication Box 16 Ports Compact Fiber Optic Termination Box

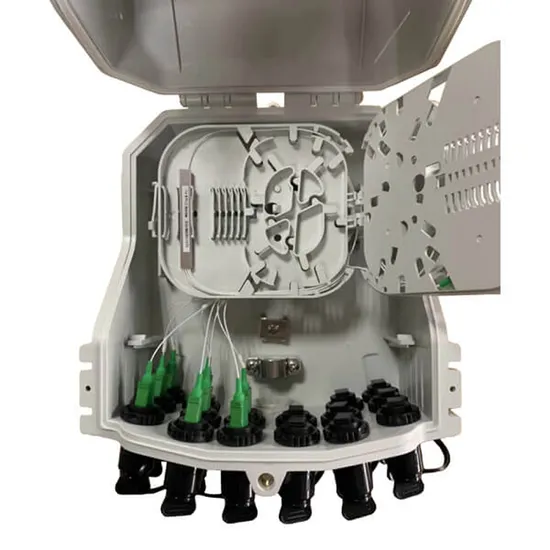

Descriptions Fiberlink's FLK-AFAT-327 16 Port Fiber Optic Termination Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network. The fiber terminal box allows 16pcs drop cable with fast connector as output ports. It provides solid protection and easy management for the FTTx network building. The fiber termination box can splice and connect the optical fibers in manhole, pole or wall mounted for both indoor and outdoor use.
Features 1.IP Protection Grade: IP65 2.The fiber terminal box used for drop cables with Fast connector. 3.Max hold 8pcs SC simplex adapters 4.Available for 2pc 1:4 or 1 pcs 1:8 micro PLC splitter optional 5.Seal with silicon rubber ring at the closure body and entry ports. 6.Adopt plastic clip lock for easy reopen and maintenance 7.Applicable for wall-mounted or pole-mounted installation
Technical Parameter 1. Environmental requirement Working temperature: -40ºC-+85ºC Relative humidity: ≤85% (+30ºC) Atmospheric pressure: 62Kpa-106Kpa 2. Main technical parameter Insertion loss: ≤0.15dB UPC return loss: ≥50dB APC return loss: ≥60dB 3. Thunder-proof technical parameter The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V Specifications:

Item No.	FLK-AFAT-327
Dimension	208×241×117mm
Body material	Modified P.P
Entry cable ports	1ports PG21
Entry cable diameter	Φ13-18mm
Drop cable ports	16 ports SC Pre-terminated Drop Cable
Adapter number	16xSC SX Adapters
Splice Tray	1×12 Cores tray +1x6cores tray
Max. Splicing Capacity	18 fibers
PLC Splitter (optional)	2pc 1*8 or 1pcs 1*16 micro PLC Splitter
Sealing Structure	Mechanical Sealing and Clip lock
