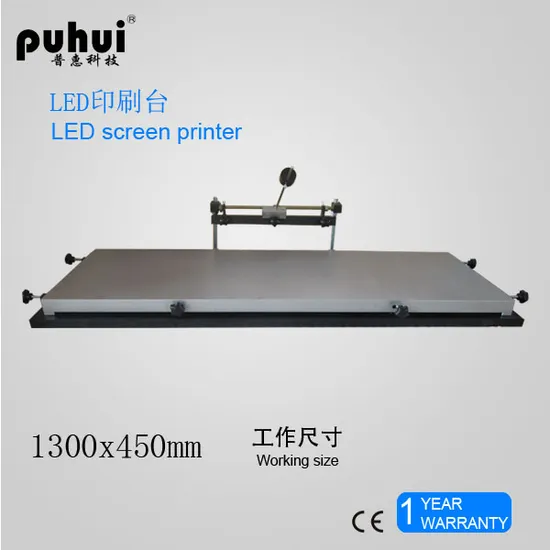

1.2m LED SMT Screen Printer, Manual Stencil Printer

Product Description

Screen Printer, 1.2m PCB Printer, LED Screen Printer, SMT Printer 1300*450mm,High Precision Printer, PCB Printing Machine
Model:1.2m LED solder paste printer
1.2m LED solder paste printer Installation Steps: 1 ,Fit the printer plate to operation plate as followed.

2,As diagrams, fit and assemble parts from Screw Rod, Stencil clip, Fixed Block, Clump weight in order.

Usages: 1.Put the stencil into stencil clip,and tight screws. 2.Make a simple position on the printer plate, place PCB and adjust handwheels to align stencil with PCB. Model:High Precision Printer Brif Instruction:

The platform can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works. Easy to locate PCB board, high flexibility ensure high printing precision. The brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB.

Specifications:

High Precision Printer	Parameters
Overall Dimensions (L*W*H)	580*320*259mm
Platform Size	300*400mm
PCB Size	270*370mm
Stencil Size	370*470mm
Platform Height	180mm
PCB Positioning Mode	Outside/ Reference Hole
Weight	12.7kg

Installation and maintenance
Install: Refer to the install guide
Maintenance: Add grease to the stencil bracket lifting motion/screw rod/ transimission motion on a regular basis.

Printing
A. Put the stencil on the stencil bracket (2) after cleaning stencil, adjust the embossing
star knob (3) to suitable location, then fixed it.
B. Install PCB positioning block (11) and PCB fixation unit (5). Referring to the position
of the positioning hole PCB board position to adjust the distance of the PCB and stencil holder
and fixed (if PCB board is big, need to use support pin (9),Support pin should select the appropriate threaded
hole screwed)
(1) 3)Rotate the upper and lower adjusting handle (1) to adjust the height of stencil bracket. Rotate X-axis adjusting handle (6) and Y-axis adjusting handle (7) to adjust the relative position of the PCB and stencil (If you can not
adjust the relative position within the full stroke, move the stencil position), if angular
difference between PCB board and stencil, need adjust Swing adjusting handle (8), adjust the bolt
height on Platform support base block(10) to make the Platform (4) even without shaking.
4) Using the blade to scrape the solder paste (Squeegee angle of blade and steel stencil should be between 30 degrees to 75
degrees)
5) Clean the stencil regularly

Packing List:
1 x Pinter
1 x Manual
