Stainless Steel Sheet Plate Edge Side Leveling Machine Leveling Machine Straightening Machine

Product Description

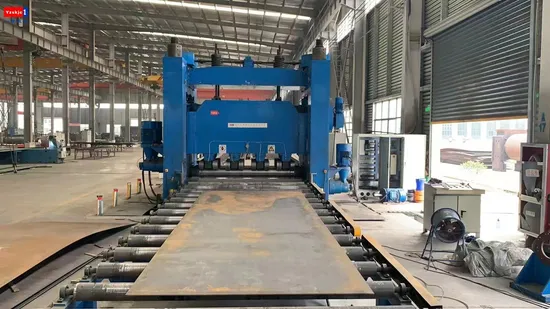

Stainless steel machine leveling machine


Product Description
Application &Main components of the Stainless steel machine leveling machine:
The device is specialized equipment for leveling metal plates, used for leveling cold-rolled coils and uneven flat plates (high-strength steel plates, carbon plates, stainless steel plates, aluminum plates, and other metal plates) in industries such as metallurgy, shipbuilding, boilers, petroleum, chemicals, locomotives, bridges, metal structure machinery manufacturing, and decoration.
The equipment consists of the frame part, roller part, movable crossbeam, pressing mechanism, cornering mechanism or guide roller part, main transmission system, dry oil lubrication system, base part, and electrical part.
The whole machine adopts a frame structure, with the lower row of working rollers fixed on the lower machine base and the upper row of working rollers fixed on the movable crossbeam. The movable crossbeam can move up and down and tilt at a certain angle to adapt to the leveling of different thickness plates. To ensure leveling accuracy, both the upper and lower rows of working rollers are equipped with support rollers.
Friendly reminder :Equipment working hours: Work 26 days per month, with three shifts per day.
Main technical parameters of the Stainless steel machine leveling machine :

No.	Item		YZW43-40×2500
1	Flatten Plate	Yield Limit σs (MPa)	235MPa
		Maximum Thickness h (mm)	40
		Plate Width b (mm)	≤2500
		Minimum Thickness hmin (mm)	10
2	Work roll	Number of Rolls n (pcs)	7( up 4 down 3)
		Roll Pitch t (mm)	340
		Roll Diameter D (mm)	300
		Roll Body Length l (mm)	2600
		Work Roll Material	60CrMoV
		Work Roll Surface Roughness Ra	0.8μm
		Work Roll Surface Hardness	HRC60-65,quenching depth 5-8mm (single side)
3	Support Rolls	Roll Pitch t (mm)	340
		Roll Diameter D1 (mm)	330
		Number of Rows (upper and lower)	2
		Support Roll Material	GCr15SiMn
		Support Roll Surface Roughness Ra	0.8μm
		Support Roll Surface Hardness	HRC50-55
4	Moving Beam	Pressing Stroke h1 (mm)	+60~-10
		Pressing Speed v1 (mm/min)	25
5	Leveling Speed v (m/min)		4(frequency conversion)
6	Leveling Accuracy ρ (mm/m)		1.0
7	Main Motor Power Pn (kW)		90
8	Main Pressing Motor Power Pn1 (kW)		11kW
9	Correcting Roll Surface Relative Height h0 (mm)		+750
10	Screw Material		40Cr,quenching and tempering treatment
11	Nut Material		Wear-resistant microcrystalline zinc-based alloy

The maximum load characteristic Wx is calculated using the formula:
Wx=σs bmax h2(n.m)
Σs is the yield limit of the plate (N/mm2);
Bmax is the max.width of the plate (mm);
Hmax is the max.thickness of the plate (mm).
Working environment :
Temperature(Factory inside):-15ºC~45ºC,Ensure long-term stable operation at this ambient temperature
Working humidity: ≤95% non-condensing.
Equipment noise: ≤85dB.
Detailed Photos
Packing list :

No.	Item	Q'ty
1	Whole machine	1 set
2	Electric controller	1 set
3	Lubricating system	1 set
4	Monitoring system	1 set
5	Standard accessories list	1 set
6	Documents	3 sets

Quick-wear parts :

	Item	Q'ty	Supplier
1	Hydraulic Station General Sealing Ring (Domestic)	1 set	Domestic famous brand ,in free .
2	High Voltage System Fuse Components	2 pcs
3	Micro Relay	2 pcs
4	Proximity Switch	1pc
5	Push Button	2pcs
6	Indicator Light	2pcs

Using modern methods such as SolidWorks 3D and 2D models, Cosmos, etc., to conduct reliability verification, structural optimization, and stress and strain visual demonstration analysis through over tens of thousands of design iterations.
Packaging & Shipping
Our customers

Certifications
Our Advantages
Corporation principle
Tech-based,Service-based ,Self-creation and Joint-cooperation.
Build long time and stable cooperation .
Realize mutual benefit .
OEM supply is powerful.
We have agents in Russia , but we want more agents all over the world , pls consult us freely and we want to help more friend.
R&D
Jiangsu Yizhong Industrial Design institute is the branch of Jiangsu Yizhong Machine tool Co.,Ltd has 6 professors ,4 doctoral students ,12 masters ,16 senior engineers ,42 intermediate engineers .Now together with Shanghai's Jiaotong university set up the SJTU-Yangzhou Industrial Design institute .Now they work together for our national 973# and 863#10000-ton Hydraulic machine robot project .
The company has strong ability for OEM machine tools .
After Sales Service
The warranty period is 12 months, calculated from the date of successful installation and trial operation.
The equipment provided by the seller is new and unused. The performance of the equipment, after installation, debugging, and operation complies with the relevant national standards or stipulated in the agreement between the parties.
The seller shall provide relevant technical support within 2 hours upon receiving a phone call from the buyer. In the event that the buyer is unable to resolve the issue independently, the seller will conduct troubleshooting at the within 24 hours in sellers' country . Parts identified as quality-related issues during the warranty period will be replaced free of charge.
