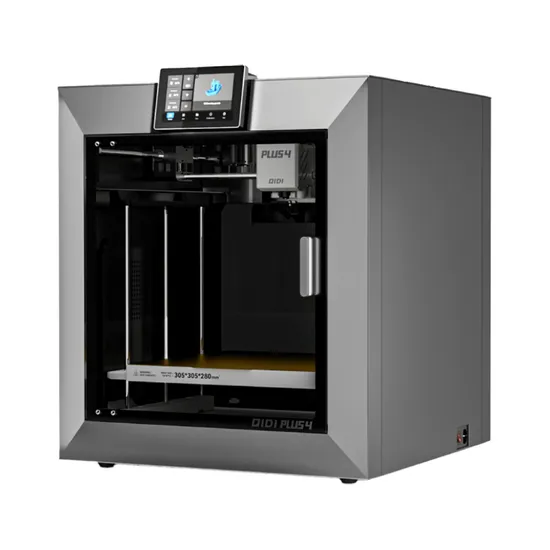

Qidi Plus4 3D Printer, Max 600mm/S High-Speed, Auto Leveling, 370° C High Temp Extruder, 65° C Heated Chamber

Product Description

QIDI PLUS4 3D Printer Product Parameters

Print size	305×305×280mm
Hot end	Ceramic sheet heating, multi-metal
Printer size	505×487×550 mm
Nozzle	Bimetal nozzle
Package size	580×600×650 mm
Nozzle diameter	0.4mm(Optional 0.2/0.6/0.8mm)
Gross weight	32kg
Net weight	27kg
Printing platform	Aluminum plate heated hot bed
Printer structure	CoreXY
Construction plate	Double-sided PEI textured plate
X/Y axis	10mm high hardness hollow linear steel shaft, belt auto tensioning
Z-axis	independent double filament motor, 10 mm linear steel shaft and filament bar
Nozzle temperature	≤ 370°C
Extruder	direct drive, hardened steel gears
Auxiliary model cooling fan	Yes
Chamber fan	Yes
Chamber temperature	(chamber heater) 2nd generation up to 65°C independent chamber heating
Supported Consumables	PLA, ABS, ASA, PETG, TPU, PA, PC, Fiberglass/Carbon Fiber Composites, etc.
Consumables cutter	Yes
Activated Carbon Air Filtration	Yes
Consumables winding detection	Yes
Material breakage detection	Yes
Auto leveling	Full auto leveling
Support model file format	STL, OBJ, 3MF, STEP, STP
Hot bed temperature	≤ 120°C
Maximum nozzle travel speed	600mm/s
Acceleration	≤ 20,000 mm/sec².
Operating system	Windows, MacOS, Linux
Input shaping	Yes
Power failure renewal	Yes
Voltage	100/240 VAC, 50/60Hz
Power rating	450 W + 400 W (chamber heating)
Display	5-inch 800 x 480 touch screen
Storage	32G EMMC and USB2.0 flash memory
Camera	Camera (up to 1080P), supports time-lapse photography
Communication	2.4G WIFI/Wired LAN/USB
Slicing software	QIDI STUDIO and other third-party slicing software, such as ORCA, PRUSASLICER, etc.

Detailed Photos
To enhance the performance of the tool head, the nozzle is capable of heating up to 370°C for high temperature printing. The second generation 80W bimetal heater significantly improves filament handling. In addition, the 400W active heating chamber design, combined with an air circulation system and a powerful turbo fan, ensures uniform temperature distribution within the chamber.
The drive system has been completely modernized and upgraded. Two independent motors, 10 mm diameter linear shafts and screws, and a 6 mm thick aluminum base not only improve stability, but also enhance print accuracy.The latest version of Klipper 0.12, as open source software, brings new user interfaces and features that can be activated and controlled on a wide range of devices.
Upgrades to the tool head include a hotbed temperature of 100°C, a nozzle temperature of 360°C and a chamber temperature of 55°C, which is particularly suitable for industrial grade PPS-CF filaments. The hardened tips of the multi-metal composite nozzles are not only wear-resistant, but also handle high-temperature filaments with ease, reducing the risk of clogging and leakage, while ease of mounting and dismounting simplifies filament cleaning and clogging.
The integrated design of the nozzles and separate hot end fans further optimize cooling through multi-directional airflow. A new generation of ventilation system allows each layer to print more perfectly with a smoother surface, while supporting higher print temperatures and improved interlayer bond strength.
Updates to the drive system also include double-layer insulation and air circulation design, two independent motors and 10 mm linear shafts and screws to ensure greater precision. A comprehensive filament detection system detects filament leaks and tangles, effectively preventing print interruptions.
The build area extends to 305x305x280 mm and the 6 mm heated stage provides industrial-grade Z-axis stability. The new system also features a 5-inch HD screen and the latest Klipper v.12 version for enhanced open source compatibility and scalability.
Compatibility with the QIDI Box and an automated multi-filament feeder box, available in the first quarter of 2025, further enhances the convenience of multi-color printing. With wired or wireless connectivity, users can monitor and manage remotely from any device, with a 1080p camera and time-lapse capabilities, making model sharing and remote monitoring even easier.
Finally, QIDI Studio's new slicing software, with its wide range of compatibility, is ideal for multi-color systems, ensuring greater efficiency and excellence in every step of the process, from design to print.
