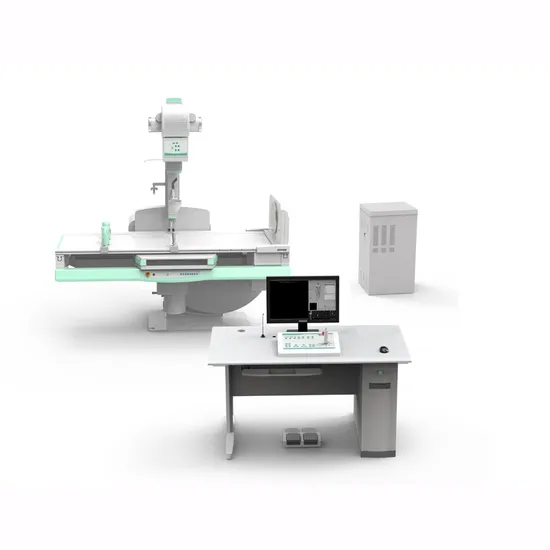

Medical Digital Fluoroscopy X-ray Machine

Product Description

Medical Digital Fluoroscopy X-Ray Machine Model: MCI0035 Product Description
Basic Functions
new patient; new check; anonymous registration; WorkList search and advanced search; WorkList refresh; WorkList information import; check list; view image; film print;The collection part is divided into gastrointestinal collection and DR. Machine Features 1)The table body can +90 degrees to 0 to -25 degrees rotate.
2)Humanized design of diagnosis bedside switch operation, can control the table body and imaging system movement,so that the close table inspection is convenient and easy operation;
3)Spot film device and imaging system movement range more than 720 mm,
4)Adopts the operation of the machine move, but the patient don't need move,can easily finish from the throat, esophagus to the lower abdomen of a series of inspections;
5)Cassette trolley can test cassette size by itself, a key can completely finish the insert piece, save space, convenient and fast;
Specification

Voltage	380V±38V
Frequency	50Hz±1Hz
Capacity	≥65kVA
Internal Resistance	≤0.17Ω
Power	56KW
Inverter Frequency	440 KHz
Radiography Tube voltage	40kV~150kV
Radiography Tube current	10mA~710mA
Radiography Time	1.0ms~10000ms
Radiography mAs	0.1 mAs~900 mAs
Fluoroscopy Tube voltage	40kV~125kV
