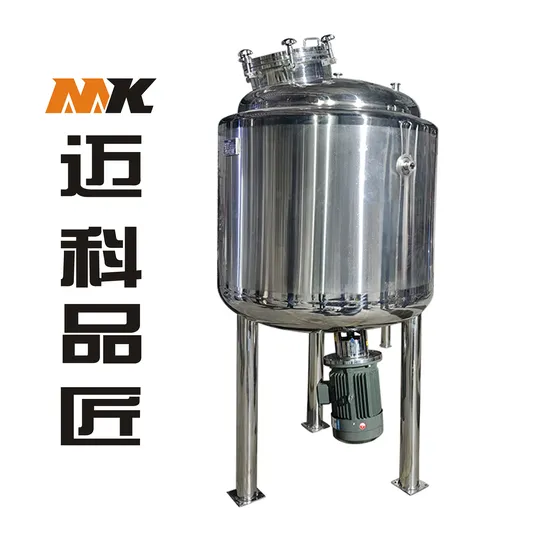

Maike 500L Stainless Steel Emulsifying Mixing Tank Milk Emulsification Mixer Tank
Basic Info.
Model NO.
MK-RHG-500
After-sales Service
Online Support
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Chemical
Certification
ISO
Condition
New
Cooling Method
Water Cooling
Heating Method
Non
Main Material
Stainless Steel
Mixing Drum Shape
Customer Customization
Stirring Type
Customized Mixing Method
Warranty
1 year
Working
Customized Mixing Speed
Layout Type
Verticle
Applicable Materials
Liquid Slurry
Heating Mode
Electric Heating
Cylinder Diameter
680mm
Place of Use
Factory
Motor Power
7.5 Kw
Thermal Insulation Material
Aluminum Silicate
Speed
2880 Rpm
Mixing Paddle Type
Emulsifying Agitator Blade
Equipment Material
304 Stainless Steel
Mixer Type
Inclined Blade Agitator
Cylinder Thickness
5 mm
Sealing Form
Mechanical Seal
Operating Type
Cycle Operating
Transport Package
Wooden Box Packaging
Specification
500L
Trademark
Maike
Origin
China
Product Description
Product OverviewMixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Type | Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| MK-RHG-50 | 50 | 300 | 1.75 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-100 | 100 | 500 | 2.75 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-200 | 200 | 600 | 3.1 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-300 | 300 | 700 | 5.5 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-500 | 500 | 900 | 7.5 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-800 | 800 | 1000 | 3 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-1000 | 1000 | 1100 | 4 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-2000 | 2000 | 1300 | 5.5 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-3000 | 3000 | 1500 | 7.5 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-4000 | 4000 | 1700 | 7.5 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-5000 | 5000 | 1900 | 11 | 0-2880 | SUS304 / SUS316L |
| MK-RHG-10000 | 10000 | 2000 | 15 | 0-2880 | SUS304 / SUS316L |
According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
