CNC 5 Axis CNC Vertical Milling Machine Center 5 Axis Machine Machining Center
Basic Info.
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Milling Machine
CNC Vertical Milling Machine
CNC Milling Machine
Milling Machine Machining Center
Machining Center
3 Axis Vertical CNC Milling Machine
Vertical Machining Center
Vertical CNC Milling Machine
Vmc
3 Axis CNC Vertical Machining Center
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 3700*2750*2800mm
Trademark
DRC
Origin
China
Production Capacity
500
Product Description

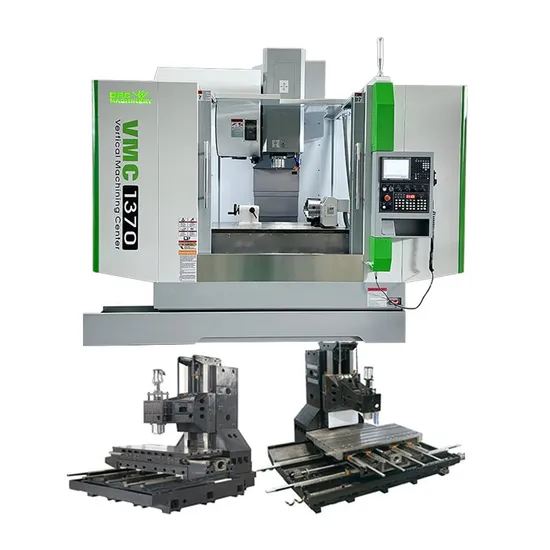

5-axis Cnc Machine High Precision VMC1370 Fanuc 5 axis Large Vertical CNC Machining Center3 axis 4 axis 5 axis CNC Large vertical machining center for metalLarge Cnc Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.
| Model | VMC1370 (GSK25i system) | VMC1580(GSK25i system) |
| Travel parameters of 3 axis | | |
| X /Y/Z axis travel | 1300/700/700mm | 1500/800/700mm |
| Spindle nose to table surface | 110-810mm | 130-860mm |
| X/Y/Z axis AC servo motor | torque N.m 22/22/30 | torque N.m 30/30/38 |
| Spindle center to column surface | 750mm | 810mm |
| Worktable | | |
| table size | 1400×700mm | 1800×800mm |
| Max.loading | 1000Kg | 1500kg |
| T Shot | 5-22×140mm | 5-22×135mm |
| Feeding parameters | | |
| X/Y/Z axis rapid feed | 24/24/20m/min | 20/20/15m/min |
| Cutting feed | 1-10m/min | 1-6m/min |
| Spindle parameters | | |
| Main shaft connection | Belt | Belt |
| Spindle taper | BT40-150 | BT50-155 |
| Range of spindle speed | 8000rpm(Optional:10000 ) | 8000rpm(Optional:10000 ) |
| Spindle motor | 11kW | 15KW |
| ATC paremeters | | |
| ATC capacity | 24qty | 24qty |
| Max.tool dia | Φ80/Φ150mm | Φ127/Φ200 |
| Max.tool weight | 8kg | 18kg |
| Precision | | |
| Position accuracy(JIS standard) | ±0.008/300mm | ±0.008/300mm |
| Repeat positioning accuracy(JIS standard) | ±0.005mm | ±0.005mm |
| Shape and weight | | |
| Dimensions | 3700×2750×2800mm | 4260×3250×2940 |
| Weight | 8200kg | 13000kg |
