TCP Server Quadband GPRS IP Modem with dB9 RS232/RS485 for Data Transmit

TCP Server Quadband GPRS IP Modem with dB9 RS232/RS485 for Data Transmit

US$200.00-220.00 1 Piece (MOQ)

Basic Info.

Model NO.
G50series
Signal Type
Band Modem
Installation
Rack-Mounted
Clip Function
AMR
Interface Type
RJ-45
Transmission Rate
10/100/1000Mbps
Application
Industrial, Enterprise
Transport Protocols
Data Compression Protocols
Transmission Mode
3G/4G
Wan Port
1
LAN Port
4
Serial Port
RS232/RS485
CPU
Mips2
Standard and Band
Egsm900/GSM1800MHz
Support
SMS, Data, Text
Flash
1MB(Extendable)
Housing
Iron, Providing IP30 Protection
Transport Package
Standard Package
Specification
CE Cetification
Trademark
HOMTECS
Origin
China
HS Code
8517623600
Production Capacity
10, 0000/Year

Product Description

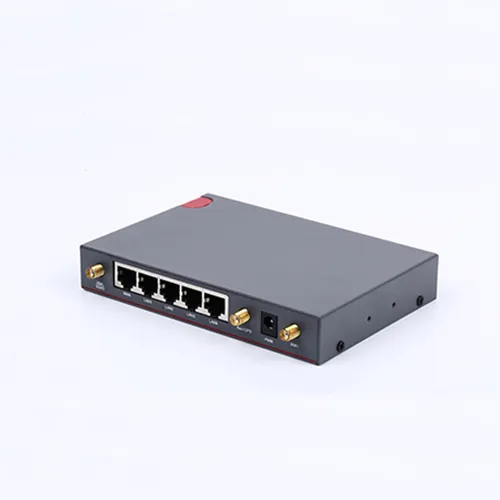

Product Description G50series 5 Ports Fast Speed Dual Band Gigabit WiFi Router
G50 series cellular router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.
This series of products use high performance industrial ARM Core A7 communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, it's a wireless router with 5 Gigabit Ethernet ports and communication serial port.
It can be used in ATM, POS, Vending, Kiosk, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc
Features:
Industrial robust design and compact metal housing
Strong electromagnetic interference Resistance, heat endurance and radiation ability
Support FDD/TDD-LTE 4G network, 3G and 2.5G backward compatible
Support multiple VPN (PPTP, L2TP, GPE, IPSec etc.)
Support multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)
Support multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)
2 Antenna interfaces, 1 GSM+ 1 Aux/Wi-Fi/GPS
5 Ethernets, 5 LAN or 4 LAN + 1 WAN
WAN port support PPPoE, static IP, DHCP client.
Built-in watch dog, Multi-link detection ensure working in stable and security way
Always online, reboot automatically if disconnected to ensure continual connection
Support APN and VPDN wireless private network access in
LCP/ICMP/flow/heartbeat check, ensure network usability
Web/CLI/SSH/Management platform support, easy configure
SNMP network management, NTP support
Local & remote management (configuration, status, upgrade firmware)
Supports Port forwarding and Bridge
Supports timing operation
Supports LED status indication
Shock and vibration resistant
Advanced:
MIMO Antenna for LTE 300Mbps optional
802.11b/g/n, ac Wi-Fi optional, 2.4G + 5G optional
Dual-redundancy between WAN links: Ethernet, 3G/4G and Wi-Fi backup
GPS capability optional for fleet management or other tracking application
DTU serial communication function optional (rs232/rs485)
OpenVPN Optional
PPTP Sever optional
AT command optional
Control by SMS optional
Schedule reboot optional
Customized and OEM/ODM acceptable
Product Parameters

Cellular
4G(FDD LTE/TDD LTE)
AU: B1/B3/B5/B7/B8/B28, B40
EU: B1/B3/B7/B8/B20/B28/B31, B38/B40
US: B2/B4/B5/B13/B17/B25, B41
JP: B1/B3/B8/B9/B18/B19/B21/B28, B41
CN: B1/B3, B38/B39/B40/B41
3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)
850/900/1900/2100 MHz
850/1900/2100 MHz
900/2100 MHz
2G(EDGE/GPRS/CDMA/EVDO) 850/900/1800/1900 MHz

Antenna Interface
Number of ports 1 or 2 (MAIN + AUX/WiFi/GPS)

SIM

1 or 2(3 V & 1.8 V)

Ethernet Interface
Number of ports 5 x 10/100/1000 Mbps, 5 LAN or 4 LAN + 1 WAN
Magnet isolation protection 1.5 KV

Serial Interface
Number of ports 1 x RS-232 or 1 x RS-485
Baud rate 300bps to 230400bps

Software
VPN tunnel PPTP/L2TP, IPsec, GRE, OpenVPN
Firewall DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name)
Management Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional
Serial port Transparent, TCP Client/Server, UDP, Modbus RTU

Others
Reset button 1 x RST
LED indicators 2 x NET, 4 x LAN, 1 x WAN, 1 x WLAN
Power 5 to 32 V DC(standard 12V/1.5A)
Power consumption Idle: 180 mA@12 V
Data link: 300 mA (peak) @12 V
Housing & Weight Metal(IP34), 500 g
Dimension 150 x 102.5 x 25.5 mm
Installation Desktop, wall mounting and DIN rail mounting
Certification CE, RoHs, FCC
