EDM Machine Hq-540K

Product Description

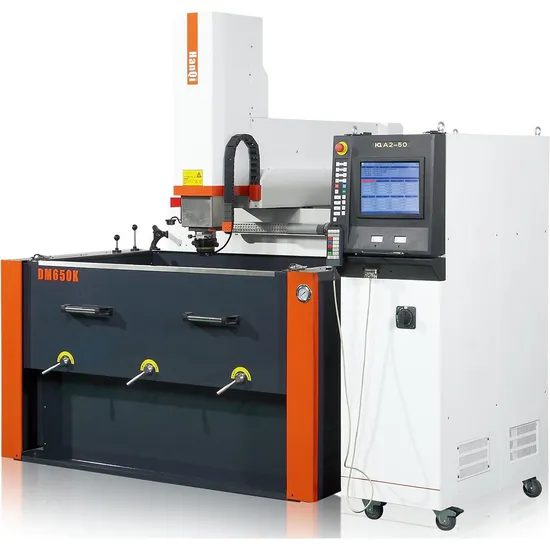

Fully CNC Single Head EDM
K series

Fully CNC Single Head EDM
K series
*Full closed-loop system
*Ethercat bus control mode
*Repetitive positioning accuracy ≤ 0.003mm
*Optimal surface roughness<0.07um
*Minimum electrode loss 0.1%
*Flatness of machined surface ≤ 0.003
Product Parameters

Machine tool		HQ-540K	HQ-650K	HQ-850K	HQ-1060K	HQ-1260K
External dimensions	Mm	1640 by 1050 by 2150	2000 * 2320 * 2530	2280 by 2470 by 2690	2200 * 3600 * 2920	2500 x 3600 x 2920
Machine weight	KG	3800	4000	4300	5200	5800
Work area
Coordinate travel (x, y, z)	Mm	500 by 400 by 300	600 * 400 * 350	800 by 500 by 400	1000 * 600 * 450	1200 by 600 by 450
Working Groove Dimensions	Mm	1300 * 920 * 500	1612 * 985 * 540	1800 * 1100 * 570	2000 * 1300 * 700	2000 * 1300 * 700
Table size	Mm	800 by 500	900 * 500	1150 by 600	1380 by 800	1380 by 800
Attachment mounting plate to work surface (minimum)	Mm	300	350	500	500	500
Attachment mounting plate to work surface (max.)	Mm	600	700	900	950	950
Maximum load-bearing capacity of table	KG	1800	2000	3000	4000	4000
Maximum electrode weight	KG	50	70	100	100	100
Pulse power
Power input	Kw	9	9	9	9	9
Maximum machining current	A	50	50	50	50	50
Maximum processing efficiency	MM3/min	≥500	≥500	≥500	≥500	≥500
Drive mode		Full Digital AC servo	Full Digital AC servo	Full Digital AC servo	Full Digital AC servo	Full Digital AC servo
Minimum electrode loss		0.10%	0.10%	0.10%	0.10%	0.10%
Surface roughness	Um	≤0.1 um	≤0.1 um	≤0.15 um	≤0.15 um	≤0.15 um
CNC system
Input mode	Touch screen, USB
Display mode	15-inch TFT-LCD, CRT
Compensation of each axis	Each axis carries on the step distance error compensation, the gap compensation respectively
Resolution of each axis	0.4
Process standard	Steel/steel, fine steel, graphite/steel, fine copper-tungsten/steel, Copper-tungsten/cemented carbide copper/aluminum, graphite/titanium Graphite/heat-resistant alloy, graphite/titanium, manufactured copper/steel, etc.
Interpolation method	Straight line, arc, spiral line, bamboo gun
Processing discharge conditions	Register function 1000 conditions (C000-C999)
Maximum number of control axes	Three axis three linkage (standard) four axis four linkage (optional)
Input Range	+ 9999.999 ~ -9999.999

Product Description
Quality Control
Detailed Photos
Sample Parts

Certifications
Company Profile
1) The chairman has worked at Hanchuan Machine Tool Factory in China (1986-2005), focusing on the field of electrical machining for nearly 40 years;
2) The company was established in 2005, with its factory located in Suzhou High tech Zone, China, covering an area of 20000 meters ²;
3) It is a high-tech enterprise in Jiangsu Province and a specialized, refined, and innovative enterprise in Jiangsu Province;
4) With over 80 employees and nearly 20 research and development personnel, it is a research and development production oriented enterprise;
5) Implement the ISO9001 quality management system and use the Carl Zeiss three coordinate system for precision testing of machine tool components;
6)In 2016, we engaged in product cooperation with Beijing Agie Charmilles Industrial Electronics Co., Ltd;
7)In 2017,we obtained titles such as Jiangsu High tech Enterprise and Jiangsu Private Science and Technology Enterprise;
8)In 2018,Introducing internationally leading production and manufacturing processes, stricter quality management systems, and standardized production processes implemented by Swiss enterprises;
9)In 2020,we developed Fully CNC Lifting Liquid Tank Mirror effect EDM,named HQ-U40,the machine which can achieve the optimal surface roughness up to 0.047um;
10)In 2022,we moved into the new a new address located in the high-tech zone and received the title of specialized, refined, and innovative enterprise in Jiangsu Province;
