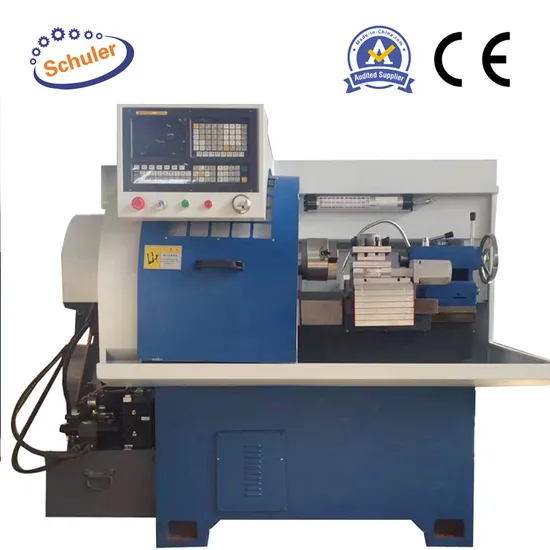

Ck6130 Ck6132 Price Small/Mini CNC Lathe for Sale Fanuc

Product Description

CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc
Specifications
CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc used in electrical appliances, instrumentation equipment industry, automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks, glasses, cultural and educational supplies, electrical machinery, valves, gas pipe fittings and other high-precision complex parts manufacturing , Is the hardware and mechanical processing industry the most efficient and efficient equipment.
Features
1. Variable frequency stepless speed regulation
2. Servo system
3. Four-position electric tool holder Parameter

Model	CK6130	CK6132
Max swing over bed	300mm	320mm
Max swing over cross slide	100mm	90/110mm
Max processing lenght	chuck260mm/collet320mm	chuck290mm/collet400mm
X/Z axis travel	300/350mm	300/380mm
Spindle nose	A2-5	A2-5
Spindle bore	48mm	48mm
Bar capacity	41mm	41mm
Max spindle speed	2500rpm	2500rpm
Chuck size	160	160
Spindle motor	4kw	4kw
X/Z axis repeatability	0.005mm	0.005mm
X/Z axis feed motor torque	4Nm	4Nm
X/Z rapid traverse	X:8 Z:10mm/min	X:8 Z:10mm/min
Tailstock quill dia	52mm	60mm
Quill travel	90mm	100mm
Quill taper	MT4	MT4
Tool post type	4-position electric turret	4-position electric turret
Cutting tool size	16x16mm	16x16mm
Guide form	shuangshan	shuangshan
Total power capacity	7KVA	7KVA
Machine dimension	1600x1100x1650mm	1750x1150x1650
N weight	950kg	1200kg

Details
CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc with details as follows:
Package
CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc with standard export package
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Schuler Heavy Machinery Co.,Ltd focused on cnc lathe machines for up to 10 years, is China's mature brand. We "quality of survival" management philosophy, the CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
Q:Whether the machine price can be more discount?
A: Shandong Schuler Heavy Machinery Co.,Ltd is always provide high quality, CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc, the price is different according to different cnc control system.
You are welcome to consult at any time.

Q:How about your manufactory in China ?
A:Shandong Schuler Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China .If you need more information about us or CK6130 CK6132 Price Small/Mini CNC Lathe For Sale Fanuc, we would like to talk with you.
