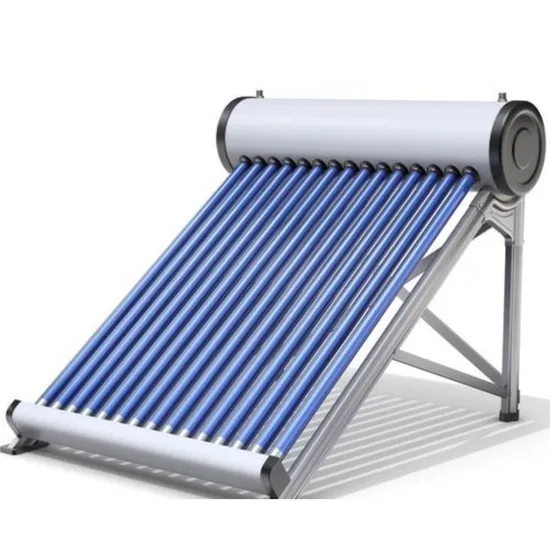

100L-360L Non-Pressurized Vacuum Tube Solar Water Heater

100L-360L Non-Pressurized Vacuum Tube Solar Water Heater

US$199.00-623.00 1 Piece (MOQ)

Basic Info.

Max. Capacity
100-360L
Structure
Evacuated Tube
Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Collector
Certification
CE, ISO9001
Vacuum Tube
58mm/1800mm
Frame
aluminum Alloy
Inner Tank
Food Grade Stainless Steel
Installation
Freestanding
Transport Package
Wooden Box
Trademark
MY SOLAR
Origin
China

Product Description

No.ModelL*W*H mmHear PipeTank DiaTank capacity LSocketInner TankFrame
1MS10800x1700x150058x1800x10pcs460mm1000.4xPVDF0.4x304-2BGalvanized Steel
2MS12950x1700x150058x1800x12pcs460mm1200.4xPVDF0.4x304-2BGalvanized Steel
3MS151175x1700x150058x1800x15pcs460mm1500.4xPVDF0.4x304-2BGalvanized Steel
4MS201550x1700x150058x1800x20pcs460mm2000.4xPVDF0.4x304-2BGalvanized Steel
5MS241850x1700x150058x1800x24pcs460mm2400.4xPVDF0.4x304-2BGalvanized Steel
6MS302300x1700x150058x1800x30pcs460mm3000.4xPVDF0.4x304-2BGalvanized Steel
7MS362750x1700x150058x1800x36pcs460mm3600.4xPVDF0.4x304-2BGalvanized Steel
Features description:Non-pressurized solar water heater is such kind of a most economical system with high efficiency at the same time. It works depending on the gravity of water, so it's much better to be installed on the slope or flat roof as top as possible to get enough hydraulic pressure. A simple assistant tank can be equipped for tap water refill automatically or with an intelligent controller to control the startup of auxiliary heating device at the same time.Vacuum tube: Hail-resisting borosilicate glass with high-tech selective coating ensures an efficient solar collecting, tri-target vacuum tube with its patent interference coating makes the efficiency not only improved by 12% but also with a high temperature resistantce (380oC).Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, together with advanced welding technics to ensure it with a long lifespan (15 years). Water tank shell: Imported color steel plate, with its outer coating treatment ensures a long life even to ocean coast weather.Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly as long as 70~80 hours.Supporting Bracket: Hot-DIP galvanized steel plate with a good weight bearing and wind resistance(140 km/hr), super mechanical performance and corrosion resistance ensures a long life to ocean coast, easy installation, universal bracket suitable for either flat or slope roof installation.Accessories: Stainless bolts & nuts, water-proof silicon rubber, anti-aging dustproof rubber seal, plastic pipe holder and ventilating cap to ensure their lives as long as other parts of the systemOptional DevicesAssistant tank, to automatically feed tap water into storage tank to keep it sufficient alwaysElectrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supplyIntelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent operationBooster Pump, a choice for those area without tap water or with a unstable water supplyWarranty: 3 years international responsibility for integrated system and 15 years for glass vacuum tubes due to original quality problems
MY SOLAR TECHNOLOGY CO., LTD.established in December 2010, is a member of MY Solar group, which is specializing in the desian, manufacture and sales of PV modules and correlative products.Our management team is experienced and professional. Our core products - PV modules, are rational designed, excellent in workmanship, and have a stable performance, power range covers 3Wp-400Wp, are widely used in photovoltaic power stations, BIPV & BAPV, satellite communications, geological monitoring andforest fire prevention, etc. Our products are exported to Europe, America, Asia- Pacific and Africa.MY Solar is a core supplier of many key large projects in China, and is also a supplier of photovoitaic modules and correlative products which is selected, trusted and recommended by many professional designing institutes.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
