Basic Info.
Customized
Non-Customized
Type
Combustible Gas Leakage Detection
Output
Sound and Light, with Relay Output
Detection Range
0-100% Lel
Application
Kitchen, House,Industrial.Commercial
Specification
120mm*86mm*48mm
Production Capacity
50000ieces/Year
Product Description
Introduction
Gas detectors are essential safety devices that help protect people, property, and the environment from the risks associated with combustable gas exposure(LPG, Nature gas etc). Their use is mandated in many industries and is a critical component of comprehensive safety management systems.
Key features and functions of a gas detector include:
Sensor Technology:
Gas detectors utilize various sensor technologies to identify and quantify the target gas(es).
Common sensor types include electrochemical, catalytic bead.The sensor type is selected based on the specific gas(es) being monitored and the required detection range.
Gas Monitoring:
Gas detectors continuously sample the air and analyze it for the presence of the target gas(es).They provide real-time monitoring and display of the gas concentration levels.Concentration levels are typically shown on a digital display or through indicator lights.
Alarm Functionality:
Gas detectors are equipped with audible and visual alarms that are triggered when gas levels exceed pre-set thresholds.These alarms warn personnel of potential hazards and prompt appropriate safety actions.Alarm set points can be configured based on safety guidelines or regulatory requirements.
Notification and Control:
Gas detectors can be integrated with control systems, building management systems, or safety systems.They can be programmed to activate ventilation systems, shut off equipment, or notify emergency responders when alarm conditions are met.This automation helps mitigate risks and facilitate a quick response to gas leaks or abnormal conditions.
Parameters

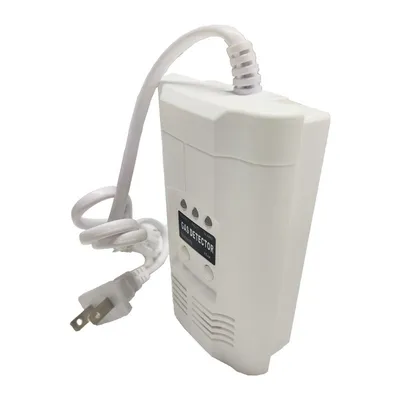

Product Name | Standalone combustible gas detector | Work Voltage | AC220V |
Volume | ≥80db | Current | Standby≤6uA; Alarm≤7mA |
Measure range | 0-100%LEL | Work temperature | -10°C~+50°C |
Output | Sound and light, with relay output | Certification | CCCF, CE |
Product Range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
